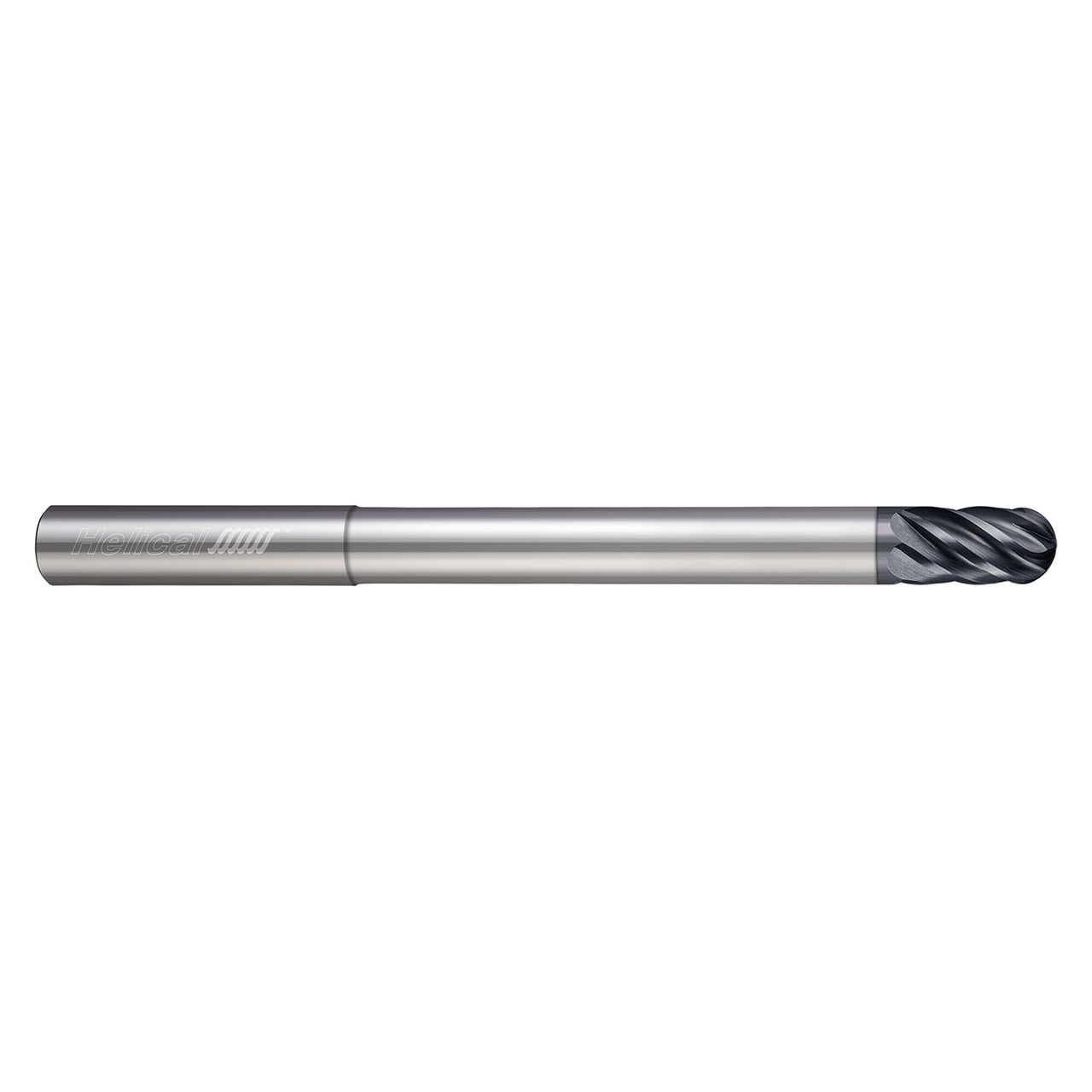

Designed with 6 flutes for excellent results in light profiling, High Efficiency Milling (HEM), and finishing, this ball profile, variable pitch end mill results in higher quality parts by decreasing chatter and harmonics.
Features:- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Tool Number | 87604 |
| Cutter Diameter (Inch) | 0.1250" |
| Neck Diameter (Inch) | 0.1180" |
| Length of Cut (Inch) | 0.1562" |
| Overall Reach (Inch) | 1.0000" |
| Overall Length (Inch) | 2.5000" |
| No of Flutes | 6 |
| LOC Multiple | 1.2x |
| Shank Diameter (Inch) | 0.1250" |
| Coating | Aplus |
