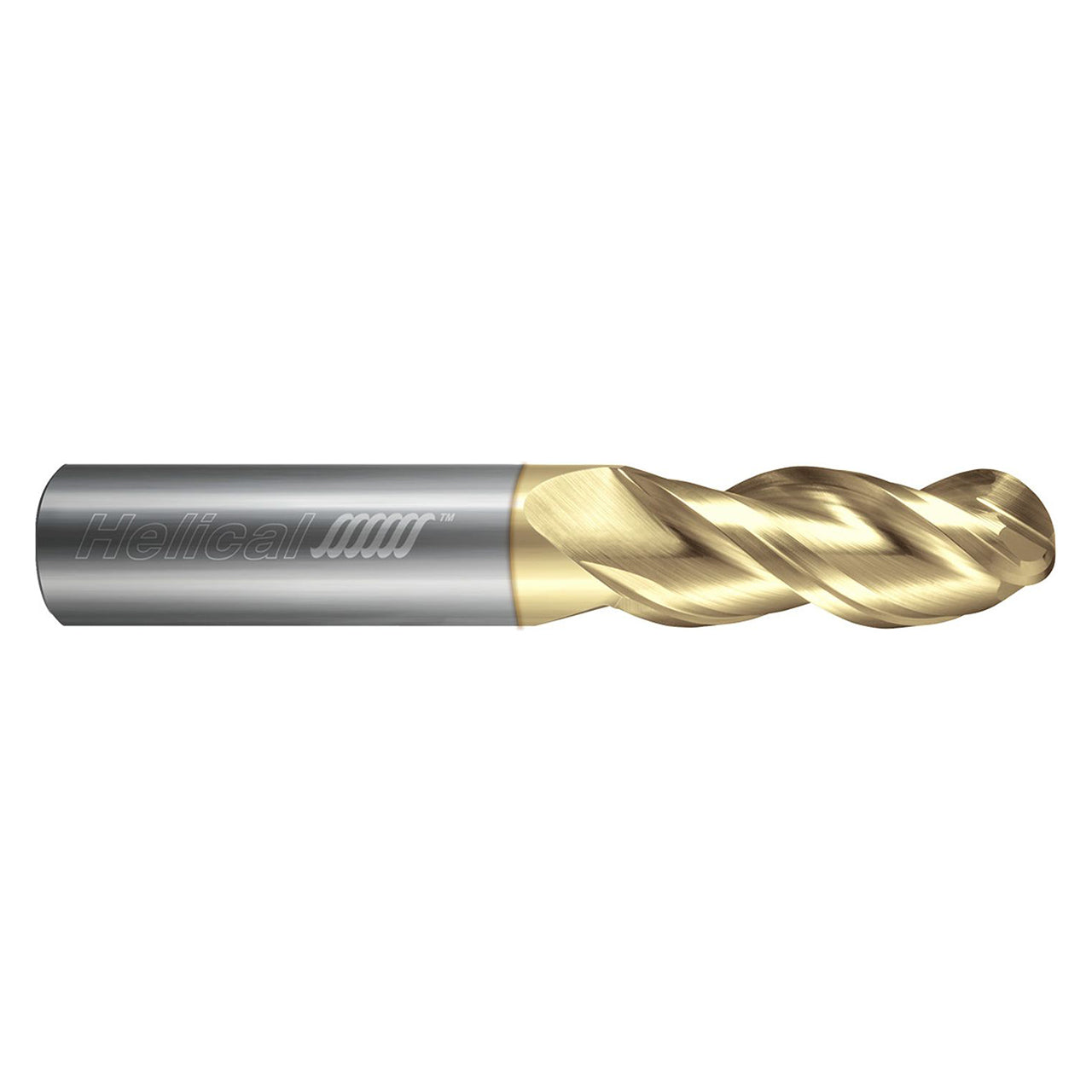

Engineered with a unique "3 teeth to-center" end geometry, the specialized combination of features of the H40ALV-3 is designed for excellent performance and accelerated metal removal rates in roughing and finishing applications in aluminum and non-ferrous materials. This tool is offered in Zplus coating for high hardness and added lubricity.
Features:- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a specialized combination of features for excellent performance in roughing and finishing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- Excellent performance in High Efficiency Milling (HEM)
- Center cutting
- h6 shank tolerance for high precision tool holders
- Uncoated tool offers an excellent option for aluminum finishing applications
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Tool Number | 86975 |
| Cutter Diameter (Inch) | 0.3125" |
| Length of Cut (Inch) | 1.5625" |
| Overall Length (Inch) | 4.0000" |
| No of Flutes | 3 |
| LOC Multiple | 5x |
| Shank Diameter (Inch) | 0.3125" |
| Coating | Zplus |
