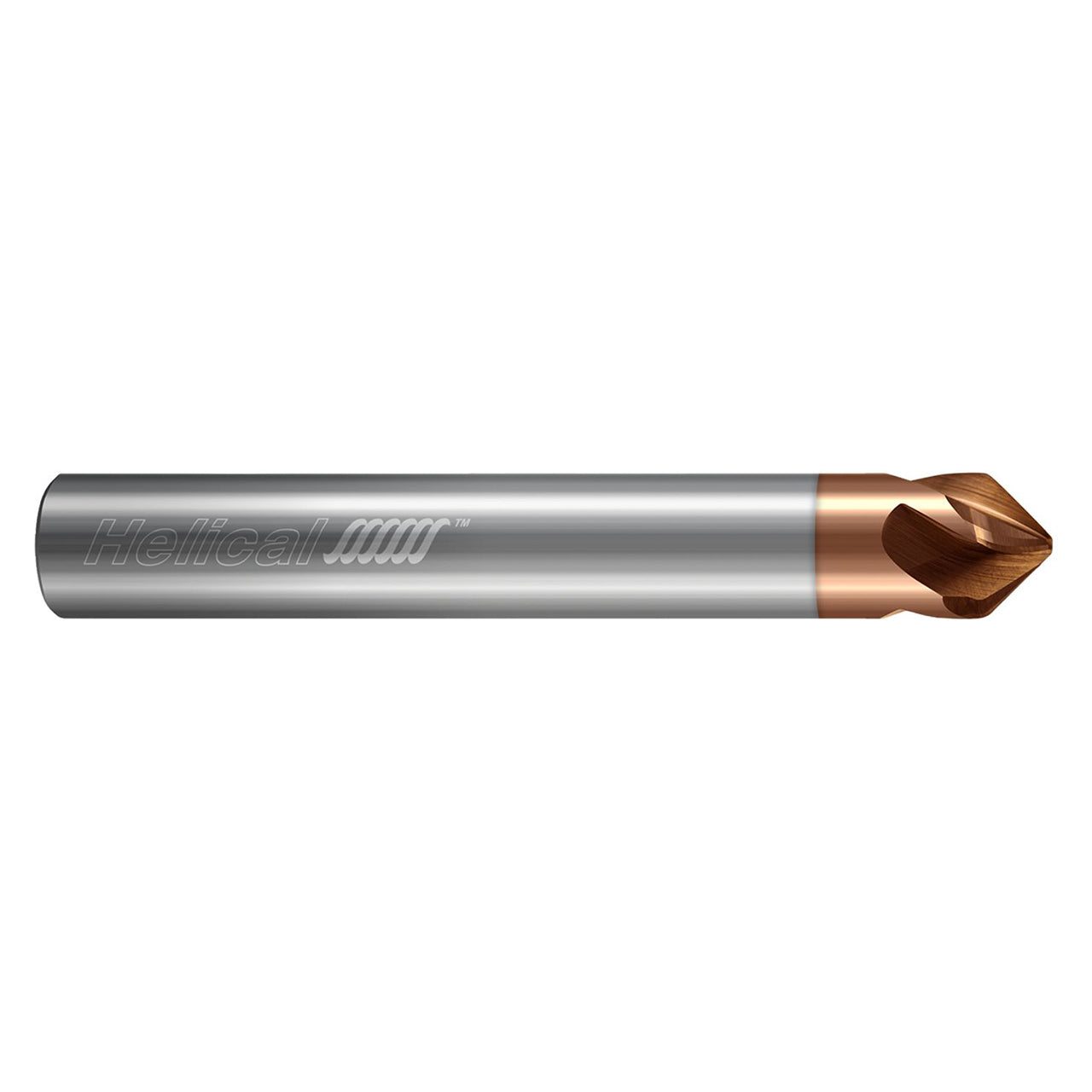

Engineered with a specially defined profile, this Oval Form Multi-Axis Finisher reduces cycle times and vastly improves surface finish in semi-finishing and finishing applications of stainless steel, high temperature alloys, and other ferrous materials.
Features:- Specially defined profile for massive reductions in cycle time and vastly improved surface finish
- Oval form with two tangential radii for versatility in angle of approach and clearance in tight spaces
- 4 flute geometry specifically designed for semi-finishing and finishing in stainless steel, high temperature alloys, and other ferrous materials
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Tool Number | 86493 |
| Cutter Diameter (Inch) | 0.6250" |
| Length of Cut (Inch) | 0.3125" |
| Overall Length (Inch) | 3.0000" |
| Corner Radius (Inch) | 0.0781" |
| Radius (Inch) | 45.0000" |
| Tip Radius (Inch) | 0.0781" |
| No of Flutes | 4 |
| LOC Multiple | 0.5x |
| Benefit Multiple | 12x |
| Shank Diameter (Inch) | 0.6250" |
| Shank Length (Inch) | 2.6875" |
| Coating | Tplus |
