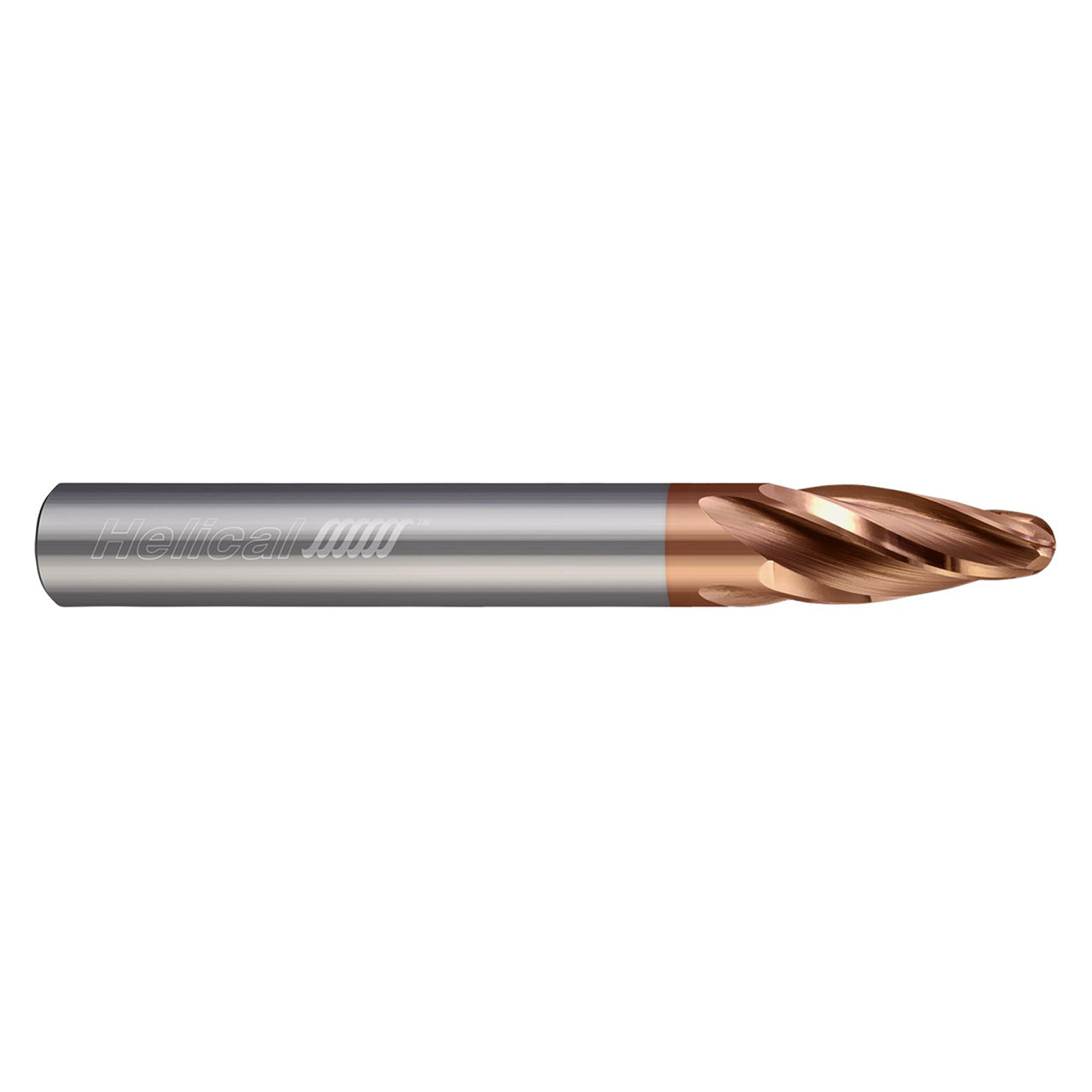

This 4 flute Multi-Axis Finisher is engineered with a taper form with three tangential radious, allowing for outstanding performance and vastly improved surface finish in stainless steel, high temperature alloys, and other ferrous materials.
Features:- Specially defined profile for massive reductions in cycle time and vastly improved surface finish
- Taper form with three tangential radii and offered in a variety of angles for maximum performance and optimal clearance angle for any workpiece
- 4 flute geometry specifically designed for semi-finishing and finishing in stainless steel, high temperature alloys, and other ferrous materials
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Tool Number | 86472 |
| Cutter Diameter (Inch) | 0.3750" |
| Length of Cut (Inch) | 0.8260" |
| Overall Length (Inch) | 2.5000" |
| Radius (Inch) | 3.0000" |
| Tip Radius (Inch) | 0.0938" |
| No of Flutes | 4 |
| LOC Multiple | 2.2x |
| Benefit Multiple | 4x |
| Shank Diameter (Inch) | 0.3750" |
| Shank Length (Inch) | 1.6740" |
| Coating | Tplus |
