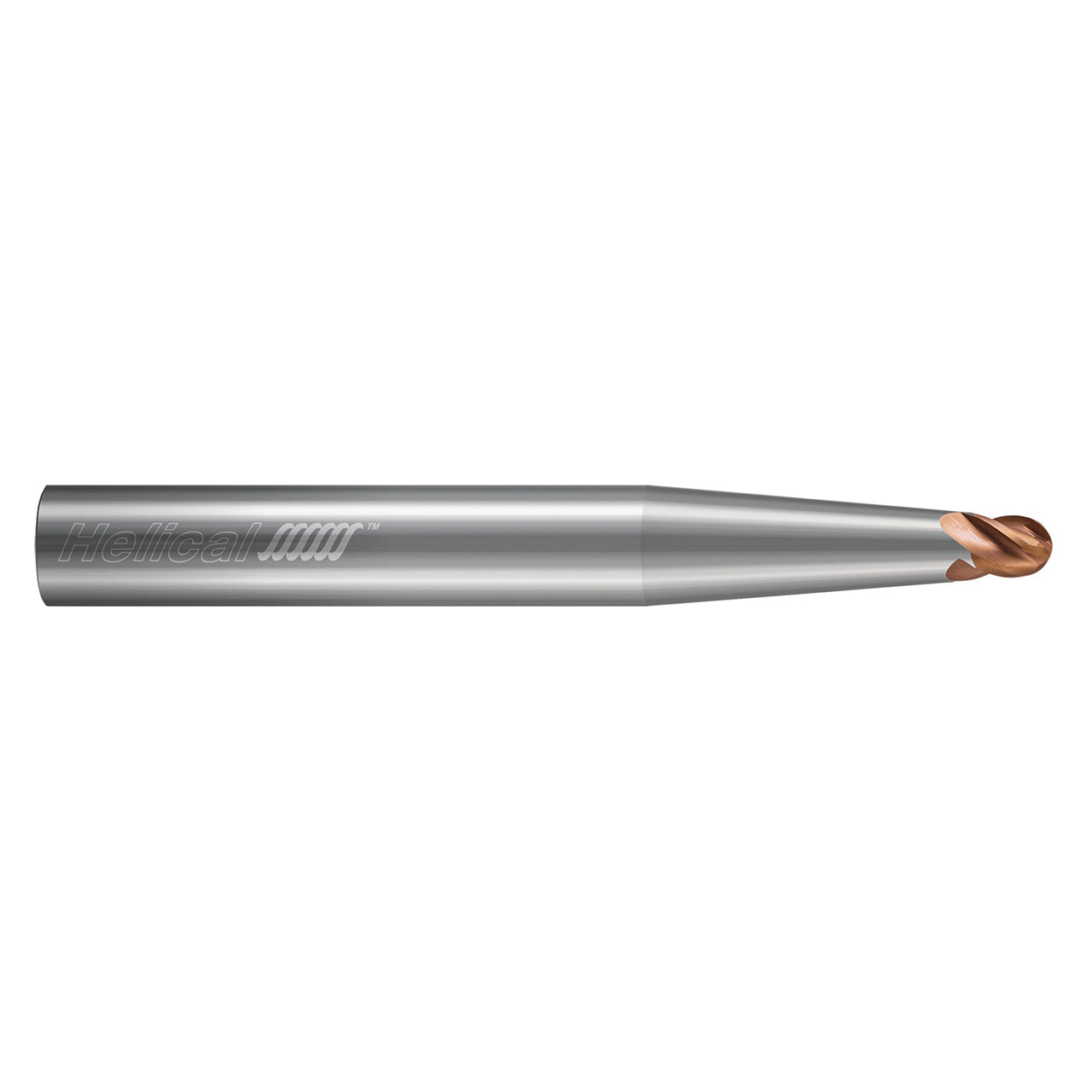

The HSV-4's variable pitch geometry effectively decreases chatter and harmonics, allowing it to leave a better part finish and last longer in your spindle. Featuring eccentric relief for maximum edge strength and Aplus coating for improved performance in tough materials, this tool is a strong choice for a variety of applications.
Features:- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered with eccentric relief for maximum edge strength in both roughing and finishing applications
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Tool Number | 86470 |
| Cutter Diameter (Inch) | 0.3750" |
| Length of Cut (Inch) | 0.5000" |
| Overall Reach (Inch) | 0.9922" |
| Overall Length (Inch) | 2.5000" |
| No of Flutes | 4 |
| LOC Multiple | 1.3x |
| Shank Diameter (Inch) | 0.5000" |
| Shank Length (Inch) | 1.5078" |
| Coating | Tplus |
