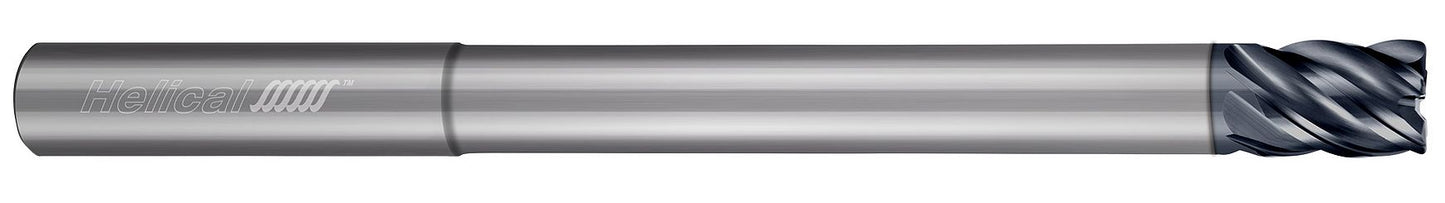

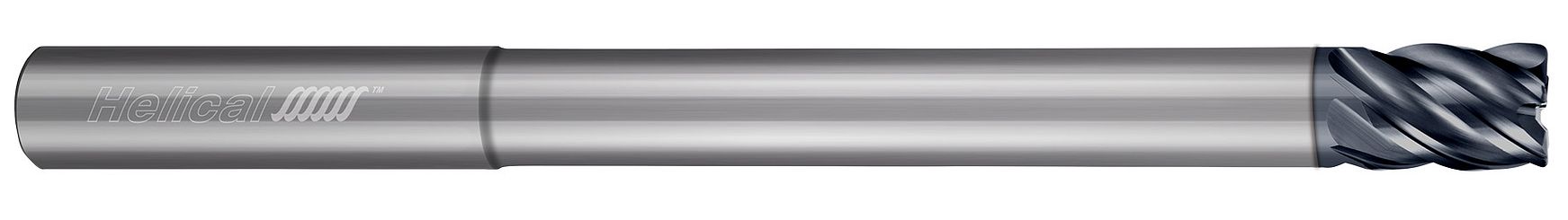

The 5 flute design of the HEV-RN-5 provides a significant lift in tool life and productivity, while increasing feed rate 20 percent over a 4-fluted tool. Its variable pitch geometry and strong core work in tandem with the reduced neck to make this tool capable of excelling in long reach applications in tough materials.
- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Neck Diameter (Inch) | 0.7120" |
| Length of Cut (Inch) | 1" |
| Overall Reach (Inch) | 2.8750" (2-7/8) |
| Overall Length (Inch) | 6" |
| Corner Radius (Inch) | 0.0600" |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
