Helical Solutions

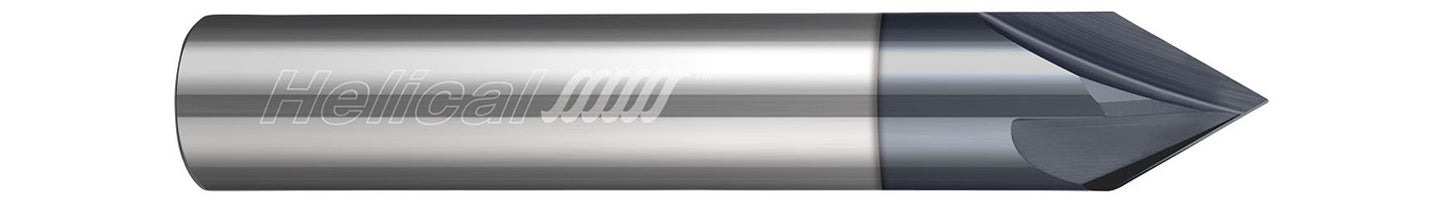

Helical Solutions 84773 | HCM60-20312 5/16" Diameter x 5/16" Shank x 2-1/2" OAL x 60 Degree Included Angle 2 Flute Aplus Coated Solid Carbide Chamfer Mill

Helical Solutions 84773 | HCM60-20312 5/16" Diameter x 5/16" Shank x 2-1/2" OAL x 60 Degree Included Angle 2 Flute Aplus Coated Solid Carbide Chamfer Mill

SKU: 25188302

$40.20 USD
$40.20 USD $40.20 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

These chamfer mills are available in 2 and 4 flutes for soft and hard materials. They are ground with a positive axial rake and clearance and are available uncoated and Aplus coated for optimal performance and wear resistance.

  • Designed for universal chamfering applications
  • Offered with 2 and 4 flutes for soft and hard materials
  • Ground with positive axial rake and clearance for optimal performance
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.3125" (5/16)
Length of Cut (Inch) 0.2700"
Overall Length (Inch) 2.5000" (2-1/2)
Tip (Inch) 0.0280"
Included Angle 60
No of Flutes 2
Shank Diameter (Inch) 0.3125" (5/16)
Finish/Coating APLUS
Center Cutting Yes
