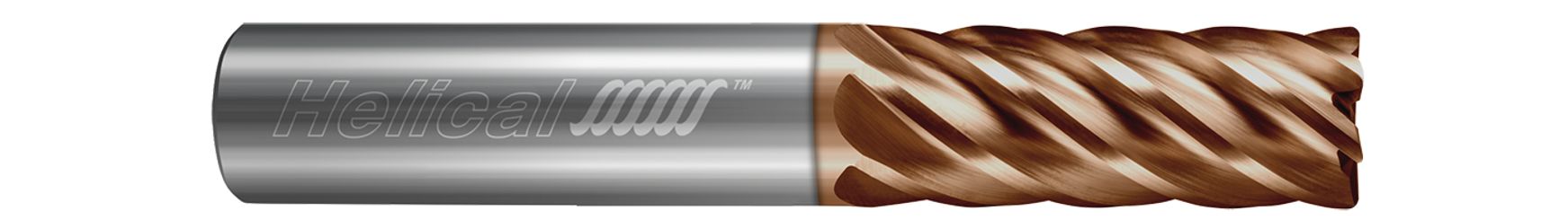

Corner radius profile, 6 flute end mill featuring a variable pitch design for reduced harmonics, and engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
- Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 6 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3125" (5/16) |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.0200" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Finish/Coating | TPLUS |
| Center Cutting (Yes/No) | Yes |
