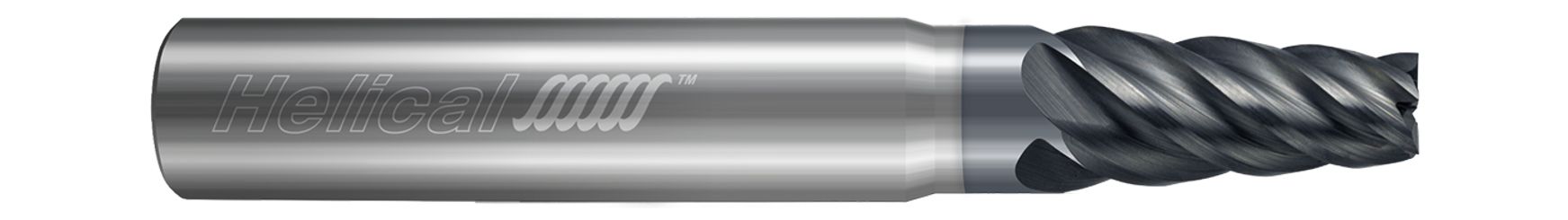

Engineered for excellent performance in light profiling and finishing applications, this 5 Flute Variable Pitch End Mill has a tapered profile designed to use in mold and die pockets and other tapered wall applications.
- Tapered profile designed for use in mold and die pockets and other tapered wall applications
- Engineered for excellent performance in light profiling and finishing applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 1.2500" (1-1/4) |
| Overall Length (Inch) | 3" |
| Included Angle | 4 |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
