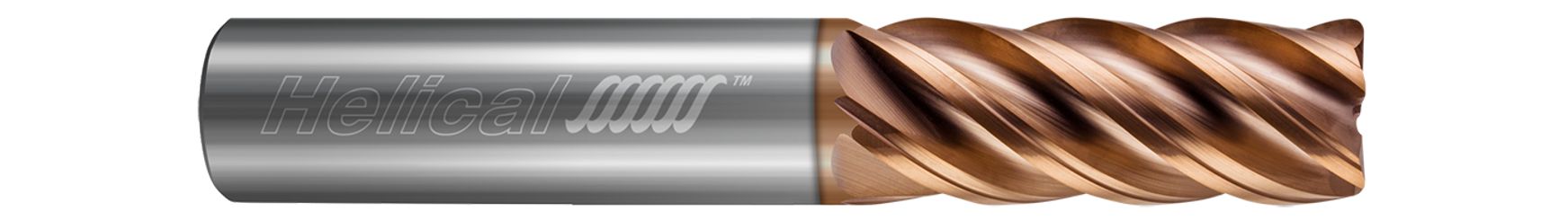

Helical Solutions 84683 | HEV-M-50750-R.190 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.1900" Radius 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84683 | HEV-M-50750-R.190 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.1900" Radius 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

SKU: 25187589

$333.90 USD
$333.90 USD $333.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Corner radius profile, 5 flute variable pitch end mill engineered to reduce harmonics and increase feed rates, and intended to provide outstanding performance and high temperature resistance in a wide range of ferrous materials.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.7500" (3/4)
Length of Cut (Inch) 2.2500" (2-1/4)
Overall Length (Inch) 5"
Corner Radius (Inch) 0.1900"
No of Flutes 5
Shank Diameter (Inch) 0.7500" (3/4)
Finish/Coating TPLUS
Center Cutting (Yes/No) Yes
