Helical Solutions

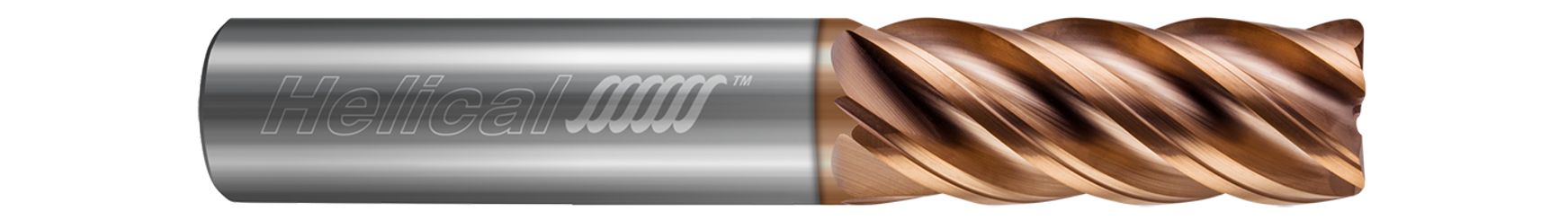

Helical Solutions 84677 | HEV-R-50312-R.010 5/16" Diameter x 5/16" Shank x 13/16" LOC x 2-1/2" OAL x 0.0100" Radius 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84677 | HEV-R-50312-R.010 5/16" Diameter x 5/16" Shank x 13/16" LOC x 2-1/2" OAL x 0.0100" Radius 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

SKU: 25187968

$64.50 USD
$64.50 USD $64.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Corner radius profile, 5 flute variable pitch end mill engineered to reduce harmonics and increase feed rates, and intended to provide outstanding performance and high temperature resistance in a wide range of ferrous materials.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.3125" (5/16)
Length of Cut (Inch) 0.8125" (13/16)
Overall Length (Inch) 2.5000" (2-1/2)
Corner Radius (Inch) 0.0100"
No of Flutes 5
Shank Diameter (Inch) 0.3125" (5/16)
Finish/Coating TPLUS
Center Cutting (Yes/No) Yes
