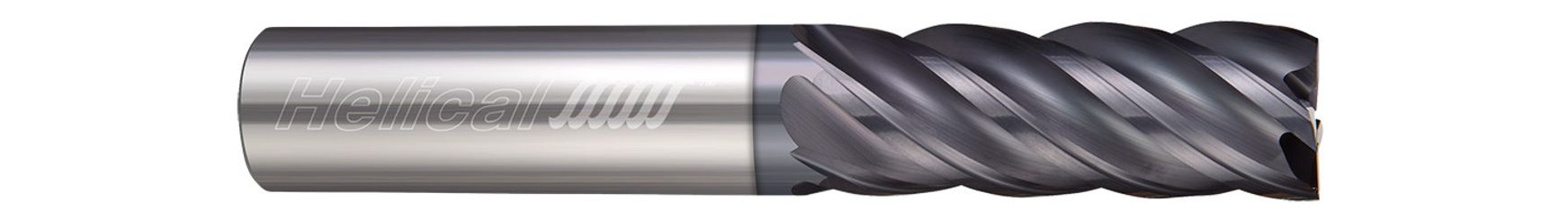

The 5 flute design of the HEV-5 provides a significant lift in tool life and productivity, while increasing feed rates over 4-fluted tools. Its variable pitch geometry, high flute count, and Aplus coating make it excel in tough materials like steels, tool steels, and cast iron.
- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 2.5000" (2-1/2) |
| Overall Length (Inch) | 5" |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
