Helical Solutions

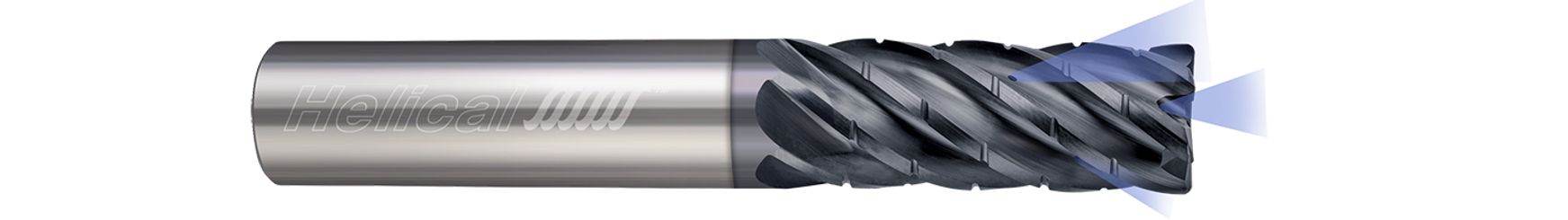

Helical Solutions 84623 | HVTIC-C-030-60750-R.030 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.0300" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84623 | HVTIC-C-030-60750-R.030 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.0300" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

SKU: 25187882

$393.90 USD
$393.90 USD $393.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Optimized for High Efficiency Milling (HEM), this 6 Flute Chipbreaker Rougher features radial coolant holes and variable pitch chipbreaker geometry for reduced heat, enhanced chip evacuation, minimized harmonics, and reduced tool pressure.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
  • 6 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
  • Not for use in traditional slotting and roughing toolpaths
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.7500" (3/4)
Length of Cut (Inch) 2.2500" (2-1/4)
Overall Length (Inch) 5"
Corner Radius (Inch) 0.0300"
No of Flutes 6
Shank Diameter (Inch) 0.7500" (3/4)
Finish/Coating APLUS
Center Cutting (Yes/No) Yes
Chip Breaker (Yes/No) Yes
Coolant Through (Yes/No) Yes
