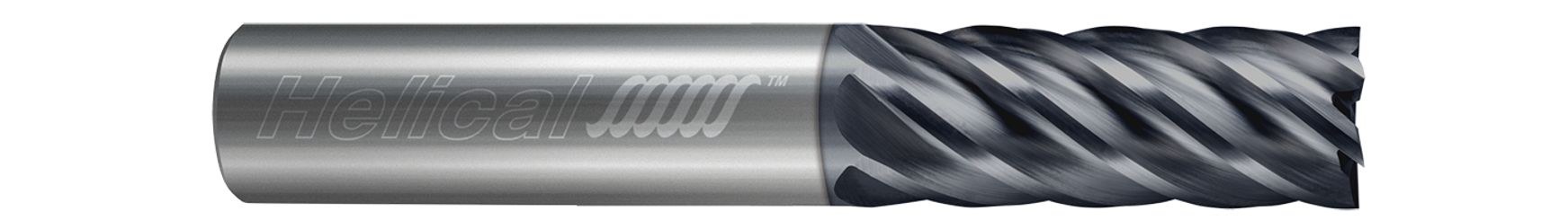

Helical Solutions 84358 | HVTI-020-60125-R.010 1/8" Diameter x 1/4" Shank x 1/4" LOC x 2-1/2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84358 | HVTI-020-60125-R.010 1/8" Diameter x 1/4" Shank x 1/4" LOC x 2-1/2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188569

$32.00 USD
$32.00 USD $32.00 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Utilize the HVTI-6, Helical Solutions' product line of tooling optimized for Titanium 6Al4V and other titanium alloys, to achieve exceptional performance in High Efficiency Milling (HEM).

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
  • Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Not for use in traditional slotting and roughing toolpaths
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.1250" (1/8)
Length of Cut (Inch) 0.2500" (1/4)
Overall Length (Inch) 2.5000" (2-1/2)
Corner Radius (Inch) 0.0100"
No of Flutes 6
Shank Diameter (Inch) 0.2500" (1/4)
Finish/Coating APLUS
Center Cutting (Yes/No) Yes
