Product Specifications

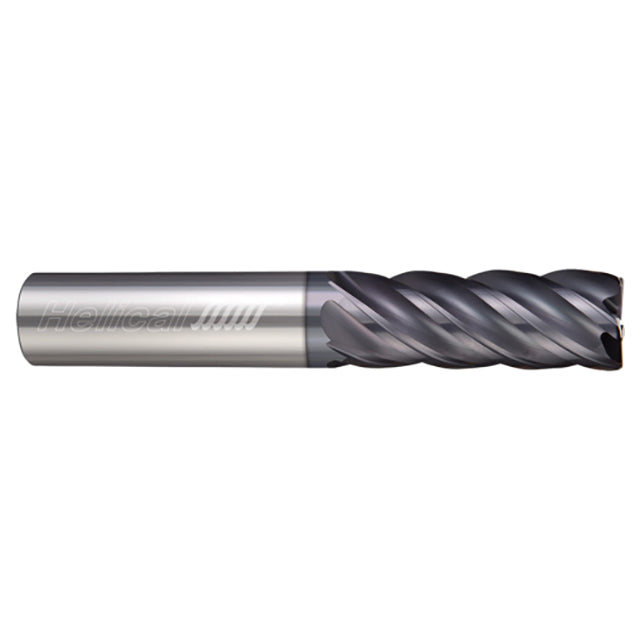

| Tool Description | HEV-LX-50625-R.120 |
| Mill Diameter (Inch) | 5/8" |
| Mill Diameter (Decimal Inch) | 0.6250" |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 3-1/4" |
| Length of Cut (Decimal Inch) | 3.2500" |
| Material | Solid Carbide |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Finish/Coating | Aplus |
| Center Cutting (Yes/No) | Yes |
| Application | Steels |
| Corner Radius (Decimal Inch) | 0.1200" |
| LOC Multiple | 5.2x |
| Shank Length (Inch) | 2-3/4" |
| Shank Length (Decimal Inch) | 2.7500" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
