Product Specifications

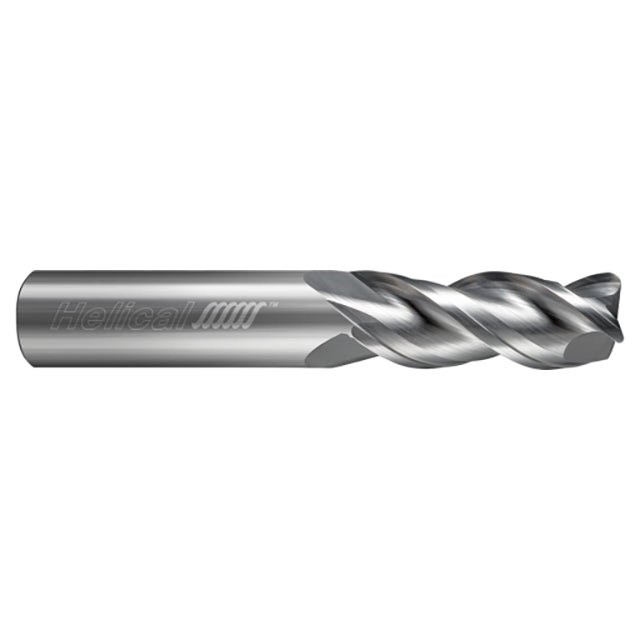

| Tool Description | H40ALV-L-30187-R.030 |
| Mill Diameter (Inch) | 3/16" |
| Mill Diameter (Decimal Inch) | 0.1875" |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1-3/8" |
| Length of Cut (Decimal Inch) | 1.3750" |
| Material | Solid Carbide |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Corner Radius (Decimal Inch) | 0.0300" |
| LOC Multiple | 7.3x |
| Web Thickness (Decimal Inch) | 0.0060" |
| Shank Length (Inch) | 1-5/8" |
| Shank Length (Decimal Inch) | 1.6250" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
