Product Specifications

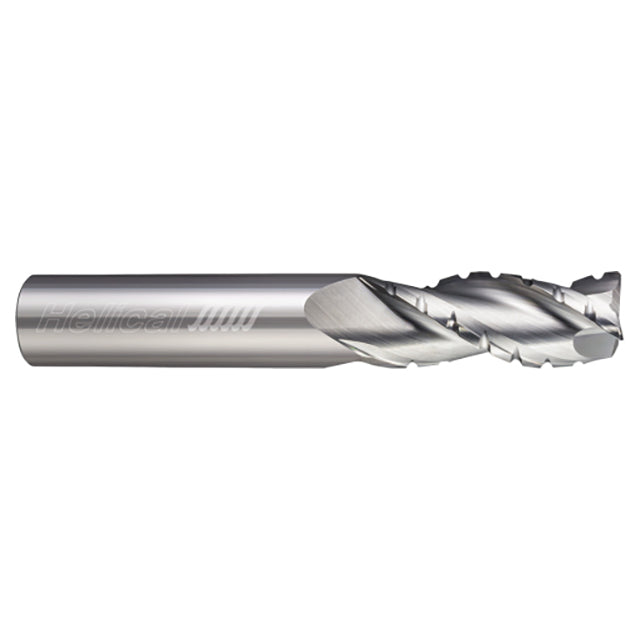

| Tool Description | H35ALV-C-020-30125-R.010 |
| Mill Diameter (Inch) | 1/8" |
| Mill Diameter (Decimal Inch) | 0.1250" |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1/4" |
| Length of Cut (Decimal Inch) | 0.2500" |
| Material | Solid Carbide |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.5000" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Corner Radius (Decimal Inch) | 0.0100" |
| LOC Multiple | 2x |
| Web Thickness (Decimal Inch) | 0.0050" |
| Shank Length (Inch) | 1-1/4" |
| Shank Length (Decimal Inch) | 1.2500" |
| Chip Breaker (Yes/No) | Yes |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
