Product Specifications

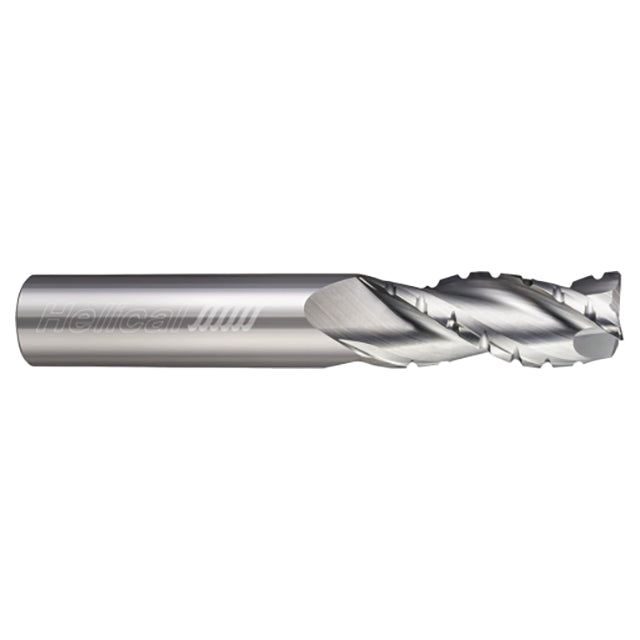

| Tool Description | H35ALV-C-026-30625-R.030 |
| Mill Diameter (Inch) | 5/8" |
| Mill Diameter (Decimal Inch) | 0.6250" |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (Decimal Inch) | 1.6250" |
| Material | Solid Carbide |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Corner Radius (Decimal Inch) | 0.0300" |
| LOC Multiple | 2.6x |
| Web Thickness (Decimal Inch) | 0.0110" |
| Shank Length (Inch) | 1-7/8" |
| Shank Length (Decimal Inch) | 1.8750" |
| Chip Breaker (Yes/No) | Yes |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
