Product Specifications

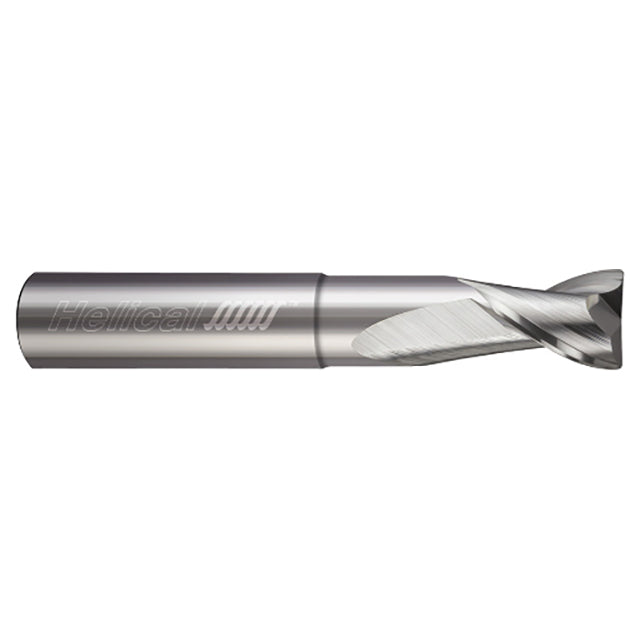

| Tool Description | HMG-RN-030-21000-R.030 |
| Mill Diameter (Inch) | 1" |
| Mill Diameter (Decimal Inch) | 1.0000" |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (Decimal Inch) | 1.2500" |
| Material | Solid Carbide |
| Overall Length (Inch) | 4-3/4" |
| Overall Length (Decimal Inch) | 4.7500" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Finish/Coating | Uncoated |
| Overall Reach (Inch) | 3" |
| Overall Reach (Decimal Inch) | 3.0000" |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Neck Diameter (Decimal Inch) | 0.9500" |
| Corner Radius (Decimal Inch) | 0.0300" |
| LOC Multiple | 1x |
| Reach Multiple | 3x |
| Web Thickness (Decimal Inch) | 0.0070" |
| Shank Length (Inch) | 1-3/4" |
| Shank Length (Decimal Inch) | 1.7500" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
