Product Specifications

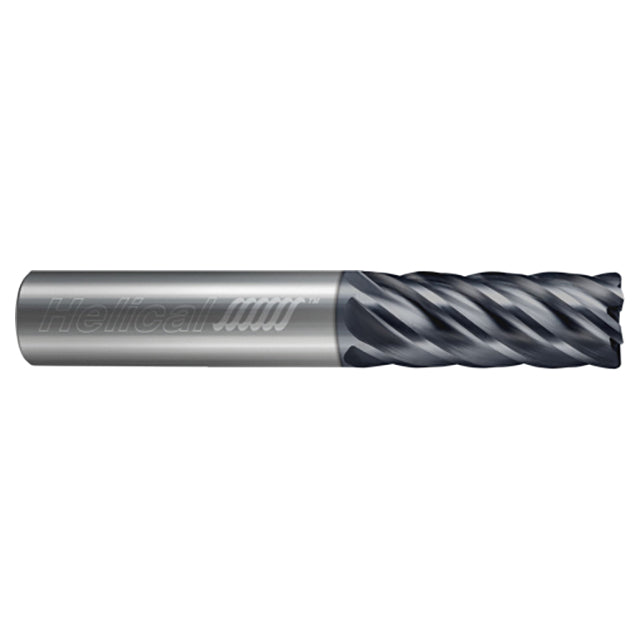

| Tool Description | HEV-M-61000-R.060 |
| Mill Diameter (Inch) | 1" |
| Mill Diameter (Decimal Inch) | 1.0000" |
| Number of Flutes | 6 |
| Length of Cut (Inch) | 2-5/8" |
| Length of Cut (Decimal Inch) | 2.6250" |
| Material | Solid Carbide |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Finish/Coating | Aplus |
| Center Cutting (Yes/No) | Yes |
| Application | Steels |
| Corner Radius (Decimal Inch) | 0.0600" |
| LOC Multiple | 2.5x |
| Web Thickness (Decimal Inch) | 0.0060" |
| Shank Length (Inch) | 2-3/8" |
| Shank Length (Decimal Inch) | 2.3750" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
