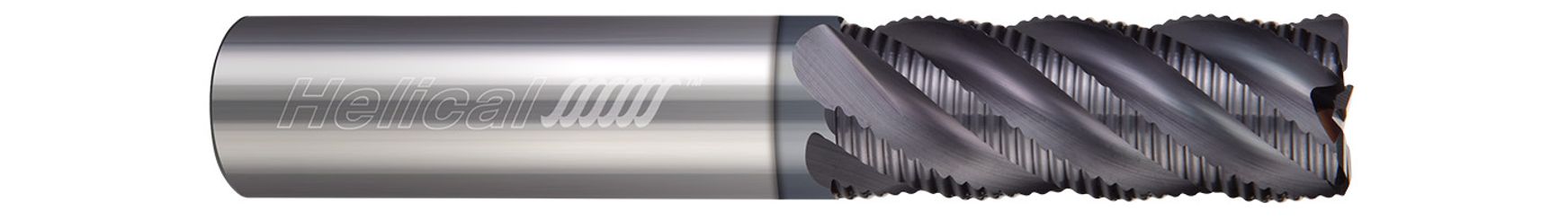

Helical Solutions 55317W | HXVR-R-50750-R.060 3/4" Diameter x 3/4" Shank x 1-5/8" LOC x 4" OAL x 0.0600" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 55317W | HXVR-R-50750-R.060 3/4" Diameter x 3/4" Shank x 1-5/8" LOC x 4" OAL x 0.0600" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

SKU: 25187857

$287.20 USD
$287.20 USD $287.20 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

The staggered "low profile" edge geometry of this multi-flute rougher allows for superior chip control and minimized cutting forces on the tool. This results in smoother machining and a more efficient metal removal process.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered with staggered "low profile" edge geometry for chip control and minimized cutting forces
  • Available in 4 flute and 5 flute options
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.7500" (3/4)
Length of Cut (Inch) 1.6250" (1-5/8)
Overall Length (Inch) 4"
Corner Radius (Inch) 0.0600"
No of Flutes 5
Shank Diameter (Inch) 0.7500" (3/4)
Finish/Coating APLUS
Center Cutting (Yes/No) Yes
