Helical Solutions

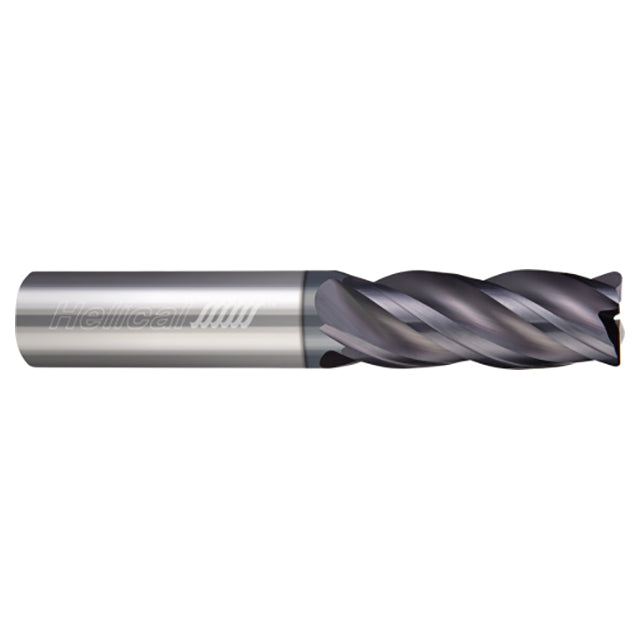

Helical Solutions 43543 | HSV-M-40500-R.090 1/2" Diameter x 1/2" Shank x 1-5/8" LOC x 4" OAL x 0.0900" Corner Radius 4 Flute Aplus Coated Solid Carbide Corner Radius End Mill For Steels, High-Temp Alloys & Titanium

Helical Solutions 43543 | HSV-M-40500-R.090 1/2" Diameter x 1/2" Shank x 1-5/8" LOC x 4" OAL x 0.0900" Corner Radius 4 Flute Aplus Coated Solid Carbide Corner Radius End Mill For Steels, High-Temp Alloys & Titanium

SKU: 25102340

$112.90 USD
$112.90 USD $112.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 159 Grams

View full details
Product Specifications
Tool Description HSV-M-40500-R.090
Mill Diameter (Inch) 1/2"
Mill Diameter (Decimal Inch) 0.5000"
Number of Flutes 4
Length of Cut (Inch) 1-5/8"
Length of Cut (Decimal Inch) 1.6250"
Material Solid Carbide
Overall Length (Inch) 4"
Overall Length (Decimal Inch) 4.0000"
Shank Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Finish/Coating Aplus
Center Cutting (Yes/No) Yes
Application Steels
Corner Radius (Decimal Inch) 0.0900"
LOC Multiple 3x
Shank Length (Inch) 2-3/8"
Shank Length (Decimal Inch) 2.3750"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
