Product Specifications

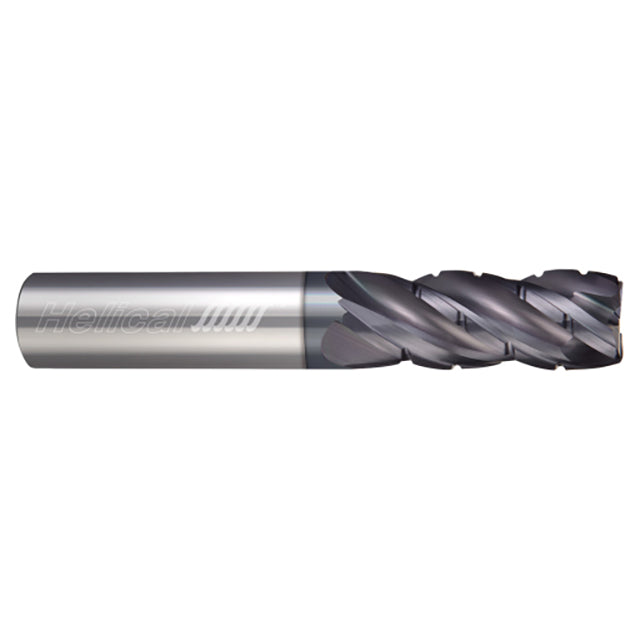

| Tool Description | HSVR-C-S-40187-R.010 |
| Mill Diameter (Inch) | 3/16" |
| Mill Diameter (Decimal Inch) | 0.1875" |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.3125" |
| Material | Solid Carbide |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Finish/Coating | Aplus |
| Center Cutting (Yes/No) | Yes |
| Application | Steels |
| Corner Radius (Decimal Inch) | 0.0100" |
| LOC Multiple | 1.5x |
| Web Thickness (Decimal Inch) | 0.0060" |
| Shank Length (Inch) | 1-11/16" |
| Shank Length (Decimal Inch) | 1.6875" |
| Chip Breaker (Yes/No) | Yes |
| Metric (Yes/No) | No |
