Helical Solutions

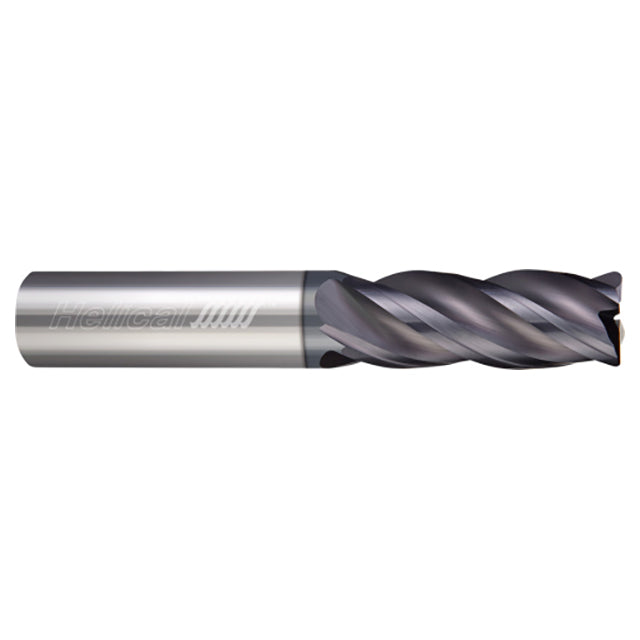

Helical Solutions 31122 | HSV-R-40218-R.010 7/32" Diameter x 1/4" Shank x 7/16" LOC x 2-1/2" OAL x 0.0100" Corner Radius 4 Flute Aplus Coated Solid Carbide Corner Radius End Mill For Steels, High-Temp Alloys & Titanium

Helical Solutions 31122 | HSV-R-40218-R.010 7/32" Diameter x 1/4" Shank x 7/16" LOC x 2-1/2" OAL x 0.0100" Corner Radius 4 Flute Aplus Coated Solid Carbide Corner Radius End Mill For Steels, High-Temp Alloys & Titanium

SKU: 25100712

$36.80 USD
$36.80 USD $36.80 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 23 Grams

View full details
Product Specifications
Tool Description HSV-R-40218-R.010
Mill Diameter (Inch) 7/32"
Mill Diameter (Decimal Inch) 0.2187"
Number of Flutes 4
Length of Cut (Inch) 7/16"
Length of Cut (Decimal Inch) 0.4375"
Material Solid Carbide
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Finish/Coating Aplus
Center Cutting (Yes/No) Yes
Application Steels
Corner Radius (Decimal Inch) 0.0100"
LOC Multiple 2x
Shank Length (Inch) 2-1/16"
Shank Length (Decimal Inch) 2.0625"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
