Helical Solutions

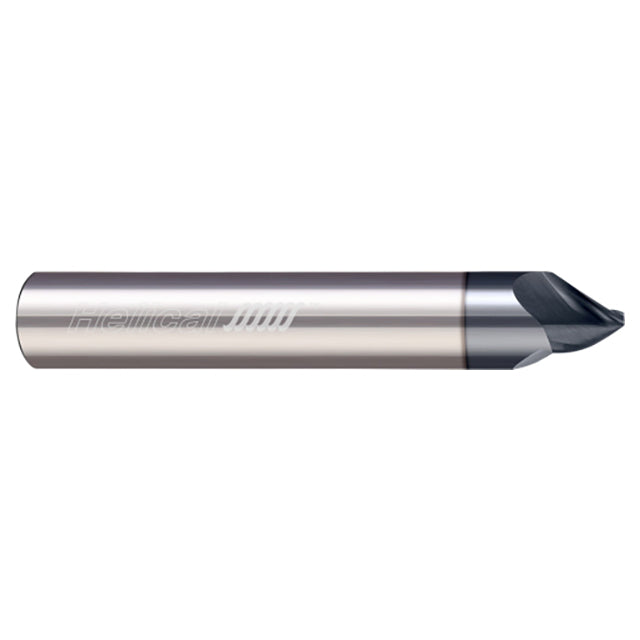

Helical Solutions 07004 | HPCM60-30625 5/8" Cutter Head Diameter x 5/8" Shank x 3" OAL x 60 Degree Included Angle 3 Flute Aplus Coated Solid Carbide Chamfer Mill

Helical Solutions 07004 | HPCM60-30625 5/8" Cutter Head Diameter x 5/8" Shank x 3" OAL x 60 Degree Included Angle 3 Flute Aplus Coated Solid Carbide Chamfer Mill

SKU: 25101218

Regular price $168.30 USD
Regular price $168.30 USD Sale price $168.30 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 204 Grams

12 in stock

Free Shipping on Orders Over $75

View full details
Product Specifications
Tool Description HPCM60-30625
MIll Diameter (Inch) 5/8"
MIll Diameter (Decimal Inch) 0.6250"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.4630"
Material Solid Carbide
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Shank Diameter (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.6250"
Finish/Coating Aplus
Included Angle 60 Degree
Center Cutting (Yes/No) No
Tip (Decimal Inch) 0.0900"
Shank Length (Inch) 2.5370"
Shank Length (Decimal Inch) 2.5370"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
