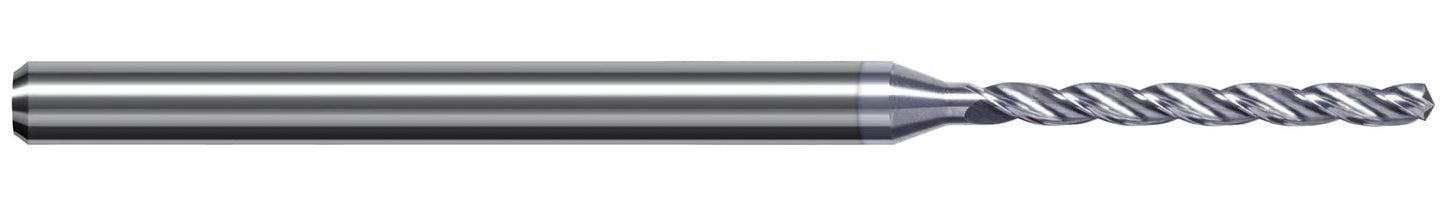

Optimized for drilling aluminum and aluminum alloys with excellent performance in unfilled plastics, copper, brass, and bronze alloys, this comprehensive offering of high performance drills features a special 3 flute design to maximize chip flow, hole accuracy, and finish.
- Special 3 flute design to maximize chip flow, hole accuracy, and finish
- 130 Degree point angle
- Polished flute valleys and TiB2 coating prevent built-up edge and extend tool life
- h6 shank tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (mm) | 6.375 mm |
| Flute Length (mm) | 42.000 mm |
| Overall Length (mm) | 100.000 mm |
| Number of Flutes | 3 |
| Point Angle | 130 |
| LOC Multiple | 5x |
| Shank Diameter (mm) | 8.000 mm |
| Metric | Yes |
| Coating/Finish | C8 |
