Product Specifications
| Manufacturer Part Number | 994605-C3 |
| Pilot Diameter (Decimal Inch) | 0.010" |
| Neck Diameter (Decimal Inch) | 0.031" |
| Neck Diameter (Inch) | 1/32" |
| Overall Reach (Decimal Inch) | 0.156" |
| Overall Reach (Inch) | 5/32" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Radius (Decimal Inch) | 0.005" |
| Number of Flute | 2 |
| Reach Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | C3 |
| Pilot Flare | 5 |
| Shoulder Flare | 5 |

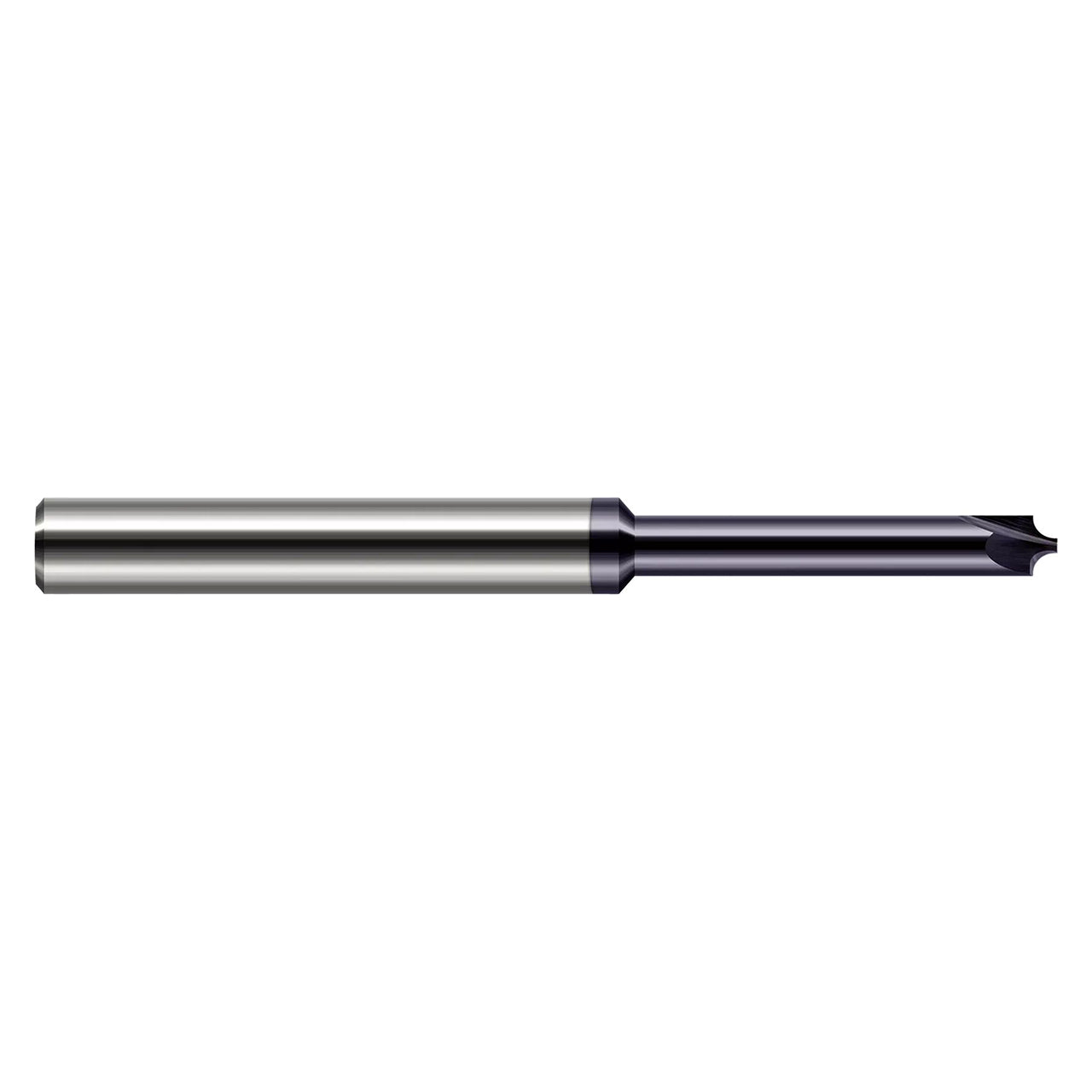

| Product Type | Corner Rounding End Mill |
