Harvey Tool

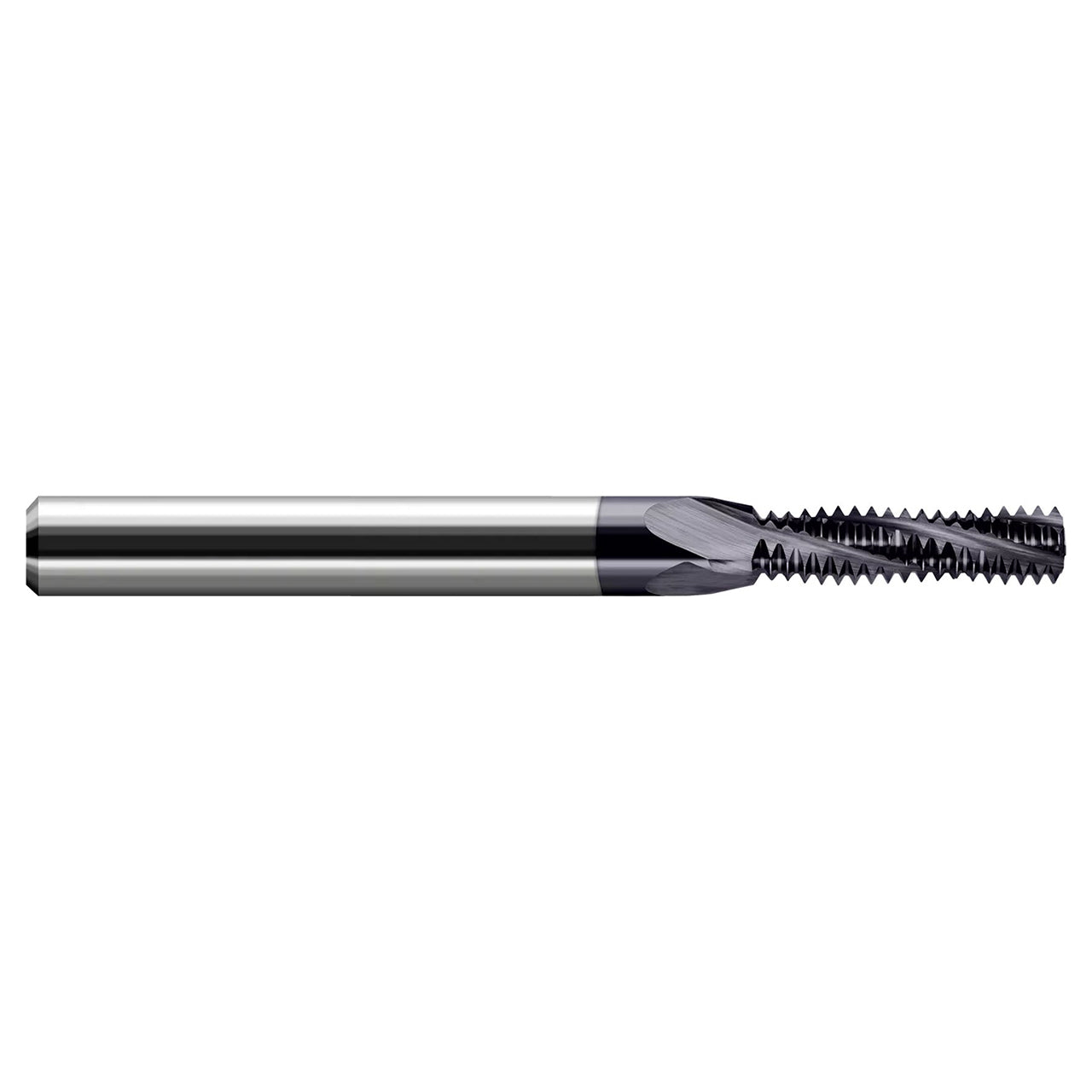

Harvey Tool 987103-C3 | 0.5800" Diameter x 1.8750" (1-7/8) LOC x 0.6250" (5/8) Shank x 4 Flute AlTiN Coated Carbide Multi-Form Thread Milling Cutter

Harvey Tool 987103-C3 | 0.5800" Diameter x 1.8750" (1-7/8) LOC x 0.6250" (5/8) Shank x 4 Flute AlTiN Coated Carbide Multi-Form Thread Milling Cutter

SKU: 25232777

$471.10 USD
$471.10 USD $471.10 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 218 Grams

View full details

Thread Milling Cutters - Multi-Form - Coolant-Through - Metric are designed to maximize chip ejection in blind holes. These helically fluted tools are able to cut larger threads of the same pitch.

  • Designed for maximum chip ejection in blind holes
  • Able to cut larger threads of the same pitch
  • CNC ground in the USA
  • Coolant through
  • Solid carbide
  • Helical flutes

Product Specifications
Tool Number 987103-C3
Cutter Diameter (Inch) 0.5800"
Length of Cut (Inch) 1.8750" (1-7/8)
Overall Length (Inch) 4.0000" (4)
Included Angle 60
Flutes 4
Size 3/4-16
Shank Diameter (Inch) 0.6250" (5/8)
Coating C3
