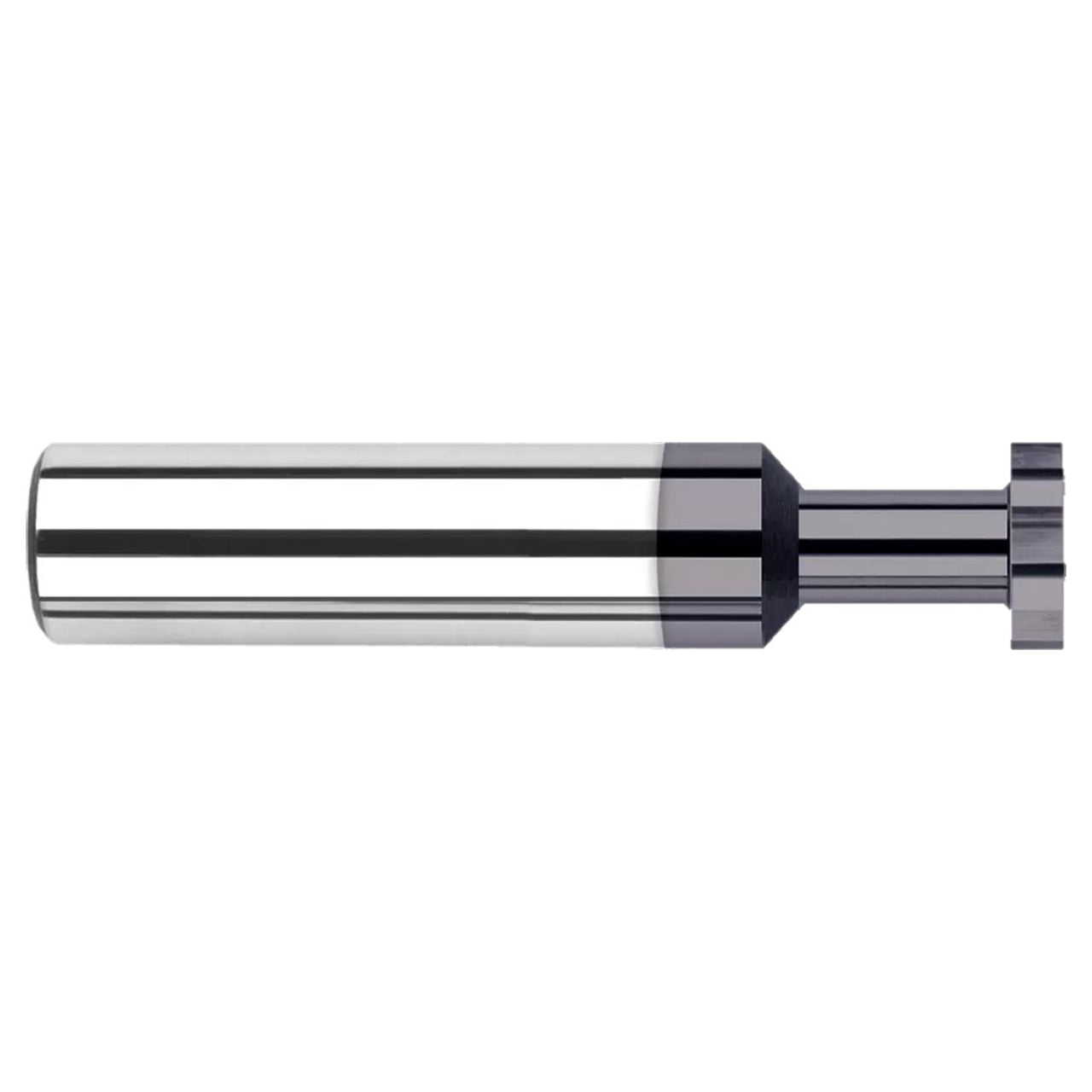

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Both sides of cutter are dished for clearance
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 975765 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Neck Diameter (Inch) | 0.1560" (5/32) |
| Cutter Width (Inch) | 0.1560" (5/32) |
| Neck Length (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Radial Depth of Cut (Inch) | 0.1620" |
| Flutes | 8 |
| Reach Multiple | 1x |
| Type | II |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating | Uncoated |
