Product Specifications
| Manufacturer Part Number | 971612 |
| Diameter (Inch) | 3/16" |
| Diameter (Decimal Inch) | 0.188" |
| Neck Diameter (Decimal Inch) | 0.141" |
| Length of Cut (Decimal Inch) | 0.126" |
| Neck Length (Inch) | 1-1/2" |
| Neck Length (Decimal Inch) | 1.500" |
| Overall Reach (Inch) | 1-5/8" |
| Overall Reach (Decimal Inch) | 1.625" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Radius (Inch) | 3/32" |
| Radius (Decimal Inch) | 0.094" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.188" |
| Wrap Angle (Degree) | 220 Degree |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | Uncoated |

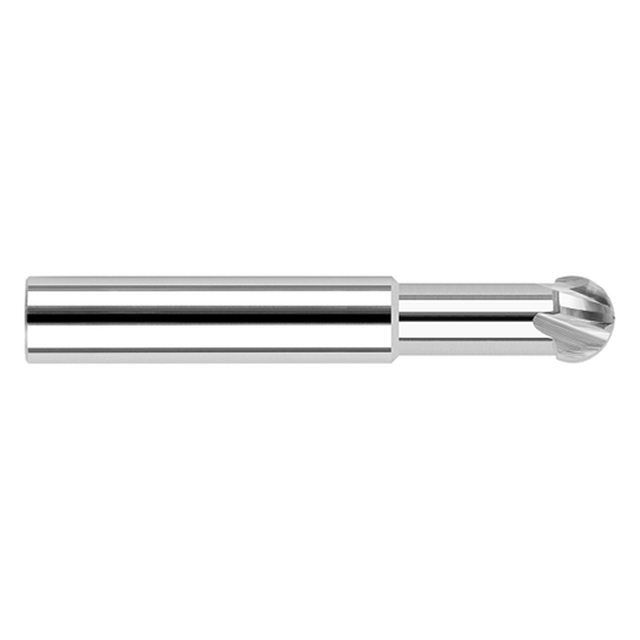

| Product Type | Undercutting End Mill |
