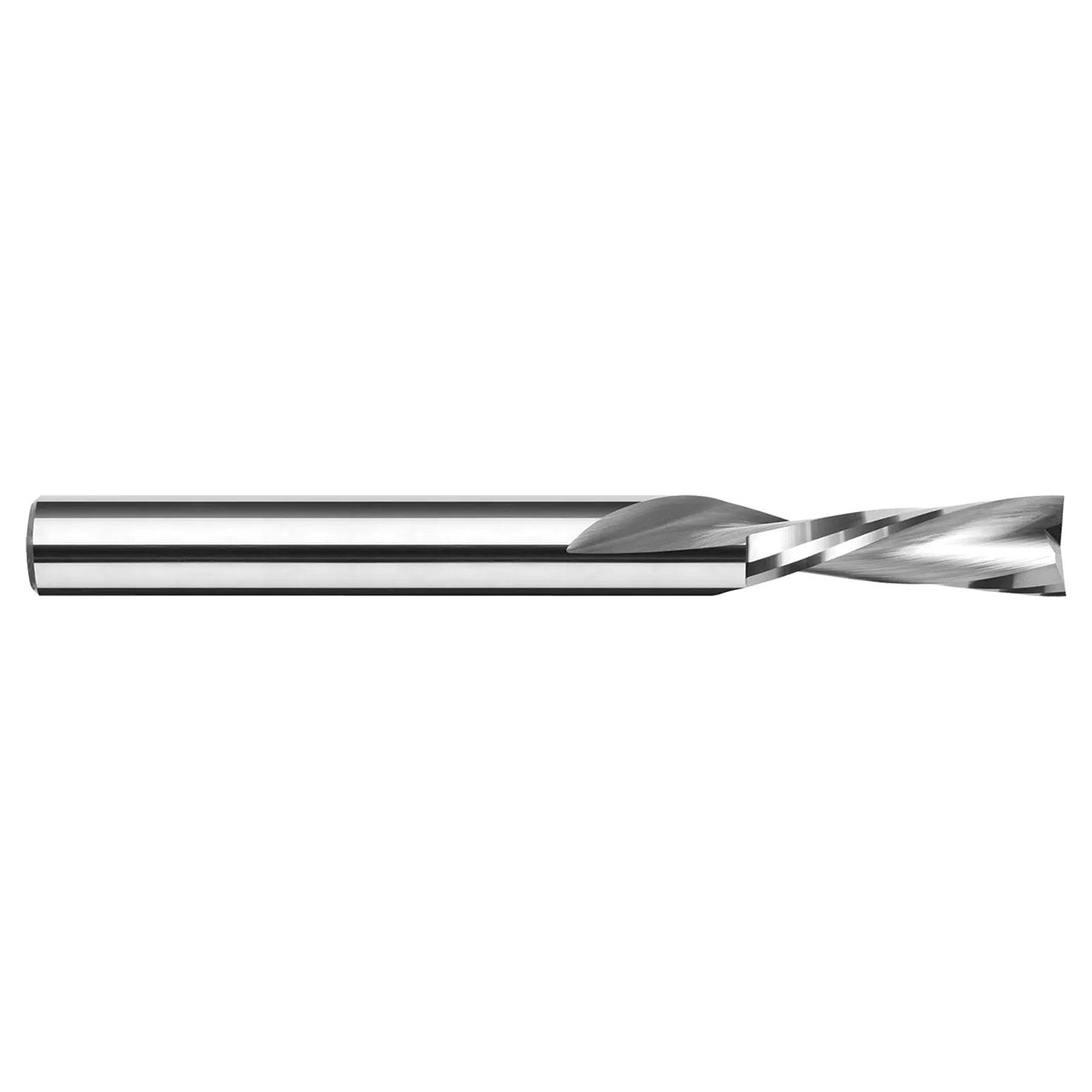

Harvey Tool 966312-C4 | 0.1875" (3/16) Cutter Diameter x 0.2810" (9/32) LOC x 2.0000" (2) OAL 2 Flute C4 Coated Square End Mill

Harvey Tool 966312-C4 | 0.1875" (3/16) Cutter Diameter x 0.2810" (9/32) LOC x 2.0000" (2) OAL 2 Flute C4 Coated Square End Mill

SKU: 25257015

$72.30 USD
$72.30 USD $72.30 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 14 Grams

View full details

End mills for plastics - square downcut - 2 flute, features a high rake, high relief design with large flute valleys to maximize chip removal and performance.

Features
  • Prevents fraying and chip out of top of workpiece
  • Prevents lifting on vacuum tables
  • 2 Left hand spiral, right hand cut flutes
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • 2 Flute design improves rigidity for better accuracy, less deflection, and longer tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number 966312-C4
Cutter Diameter (Inch) 0.1875" (3/16)
Length of Cut (Inch) 0.2810" (9/32)
Overall Length (Inch) 2.0000" (2)
Shank Diameter (Inch) 0.1875" (3/16)
Number of Flutes 2
LOC Multiple (1.5x)
Coating C4
Profile Square
