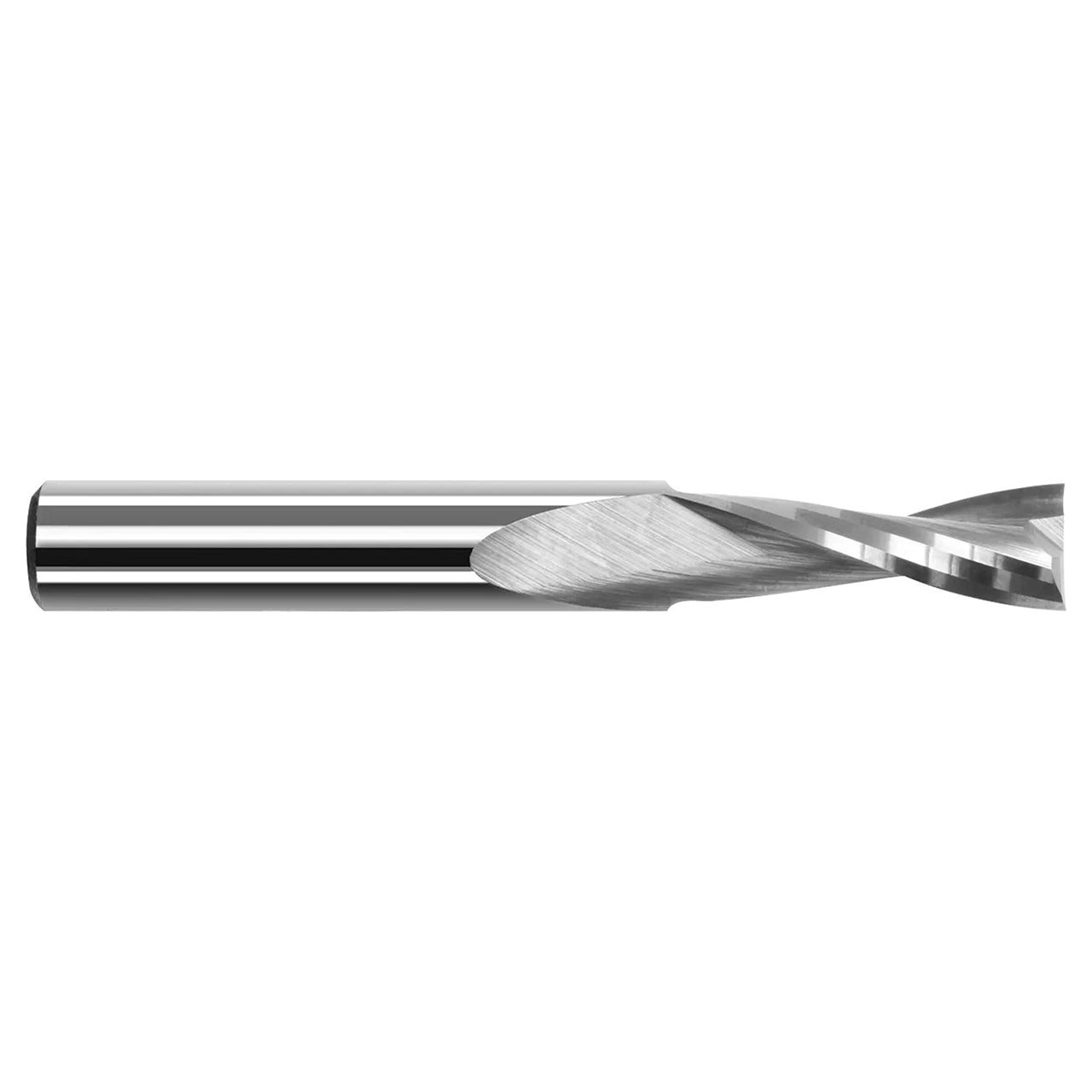

CNC ground in the USA from solid carbide, this fully stocked Harvey Tool offering of End Mills for Plastics - Square Upcut - 2 Flute features a slower helix (of approximately 20 Degree) for minimized lifting forces, preferable for vacuum table setups.
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- High rake, high relief design with large flute valley maximizes chip removal and performance
- 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
- Center cutting design improves plunging and ramping
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 957748-C4 |
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 1.1250" (1-1/8) |
| Overall Length (Inch) | 4.0000" (4) |
| Flutes | 2 |
| LOC Multiple | 1.5x |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Coating | C4 |
