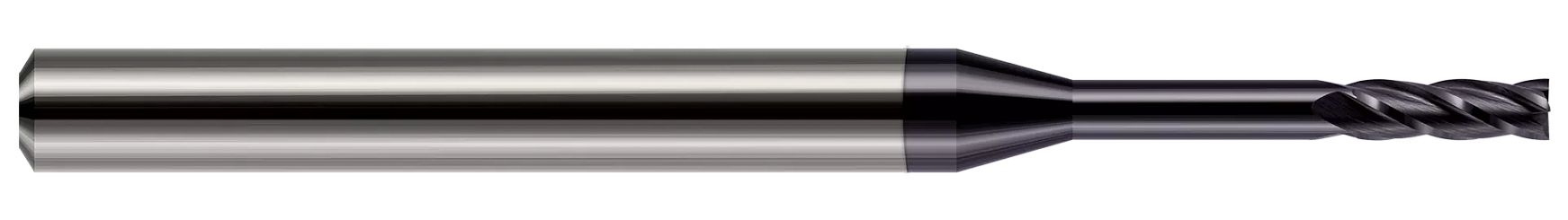

CNC ground in the USA, Harvey Tool's solid carbide Router Style Miniature End Mills are offered in 2 or 4 flute styles and feature a square profile, router style shank, and tighter overall length tolerances for quick and consistent CNC tool changes.
- Router style shank and tight overall length for quick and consistent tool changes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0200" (.5 mm) |
| Neck Diameter (Inch) | 0.0192" |
| Length of Cut (Inch) | 0.0600" |
| Neck Length (Inch) | 0.0400" |
| Overall Reach (Inch) | 0.1000" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| LOC Multiple | 3x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C4 |
