Harvey Tool

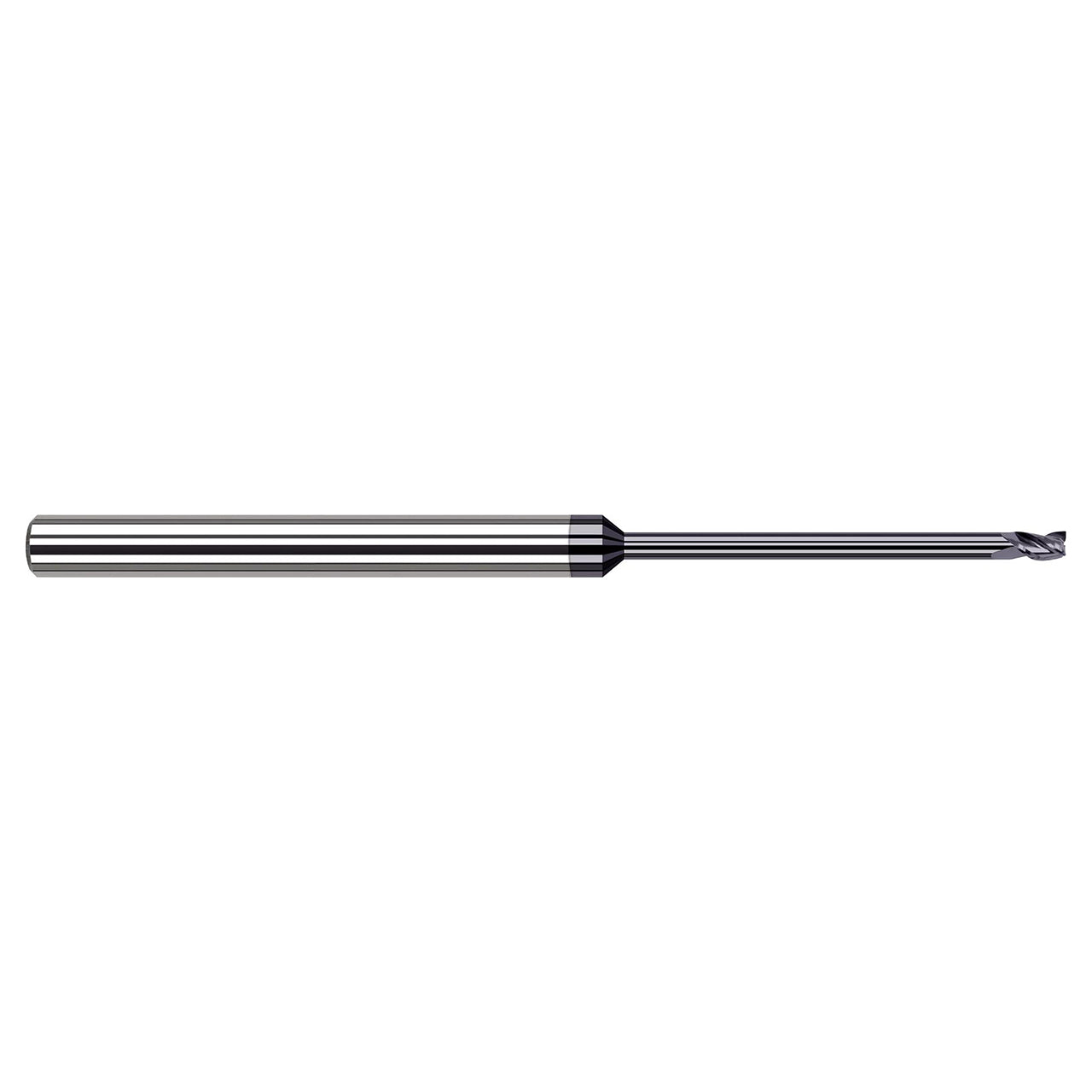

Harvey Tool 945605 | 0.1180" (3 mm) Diameter x 0.1250" (1/8) Shank x 0.1770" LOC x 2.5000" (2-1/2) OAL x 3 Flutes Uncoated Carbide Square End Mill

Harvey Tool 945605 | 0.1180" (3 mm) Diameter x 0.1250" (1/8) Shank x 0.1770" LOC x 2.5000" (2-1/2) OAL x 3 Flutes Uncoated Carbide Square End Mill

SKU: 25232445

$41.20 USD
$41.20 USD $41.20 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 14 Grams

View full details

This solid carbide offering of Miniature End Mills - Square - Long Reach, Stub Flute is fully stocked in seventeen reach lengths.

  • Long length design for deep cavities
  • Reduced neck diameter to avoid heeling
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 945605
Cutter Diameter (Inch) 0.1180" (3 mm)
Neck Diameter (Inch) 0.1165"
Length of Cut (Inch) 0.1770"
Overall Reach (Inch) 0.4750"
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 1.5x
Reach Multiple 4x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
