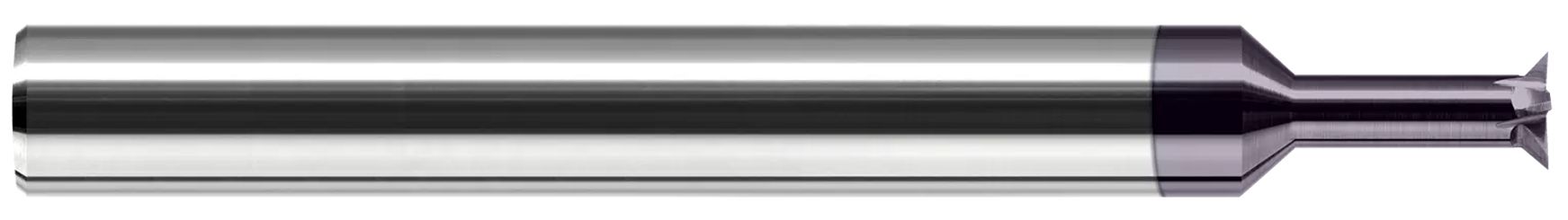

Harvey Tool's fully stocked product offering of solid carbide Back Chamfer Cutters offers a low profile design with multiple flutes and greater radial projection. This tool is optimized for generating chamfered features on the backside of small holes, resulting in improved part finishes.
- Low profile design and greater radial projection ideal for generating chamfered features on the backside of small holes or slots
- Decrease costs by avoiding time-consuming changes to part set-ups
- Slightly undersized to fit in common hole sizes
- 90 Degree included angle, cutting on angle only
- Left hand shear flute / right hand cut evacuates chip away from part
- Multiple flutes for improved finish
- Solid carbide
- CNC ground in the USA
Product Specifications
| Head Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.0750" (1.9 mm) |
| Length of Cut (Inch) | 0.0220" |
| Neck Length (Inch) | 0.2180" (7/32) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 5 |
| Angle per Side | 45 |
| Included Angle | 90 |
| Reach Multiple | 3x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
