- Ideal for machining graphite and composites, green carbide and green ceramics
- Reduced neck for clearance and maximum rigidity
- True crystalline CVD diamond on carbide substrate
- h6 shank tolerance for high precision tool holders
- Maximum abrasion resistance increases tool life
- CNC ground in the USA
- Center cutting
- 4 flutes
Product Specifications

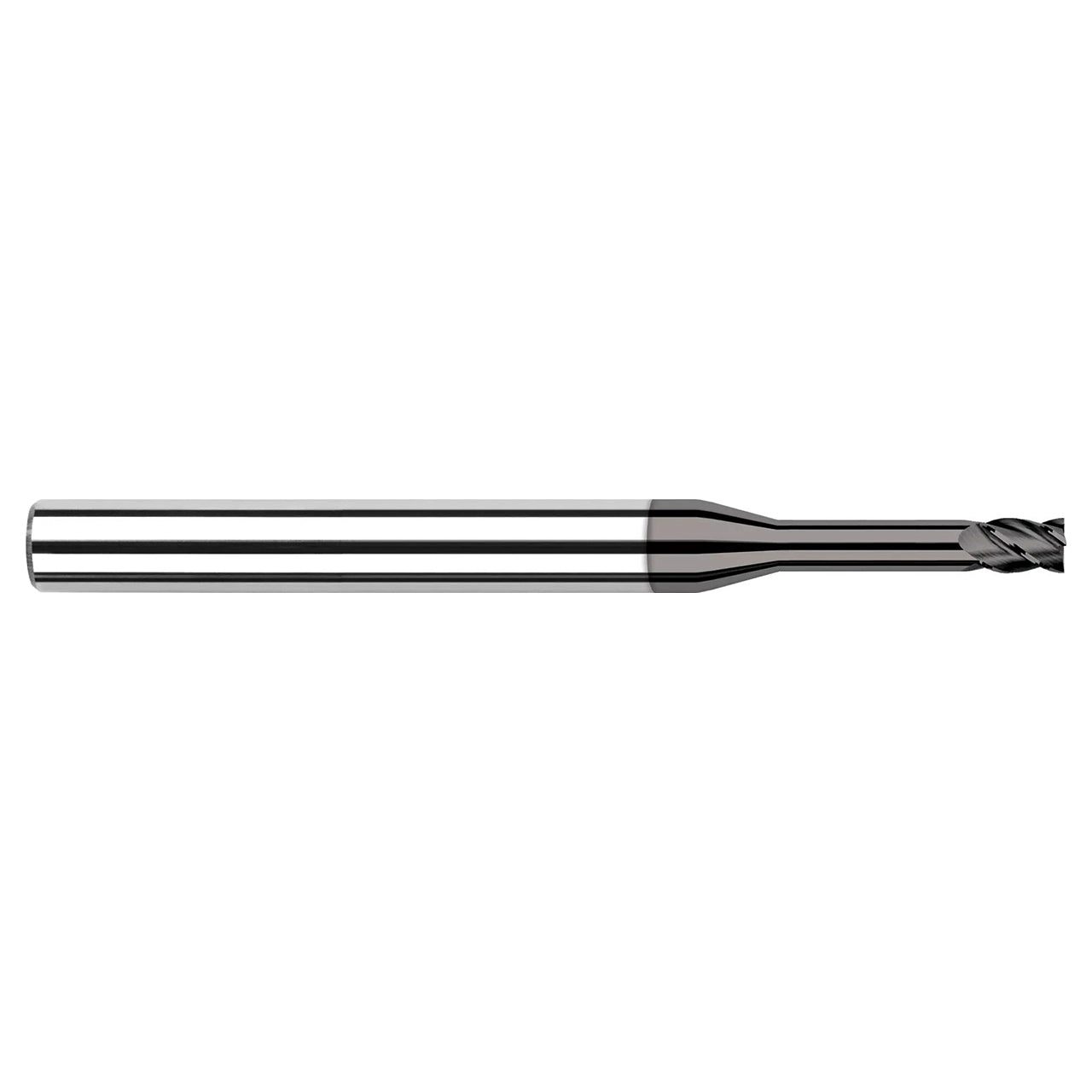

| Tool Number | 943132 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Neck Diameter (Inch) | 0.4900" |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Overall Reach (Inch) | 2.6250" (2-5/8) |
| Overall Length (Inch) | 4.0000" (4) |
| Flutes | 4 |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating | C5 |
