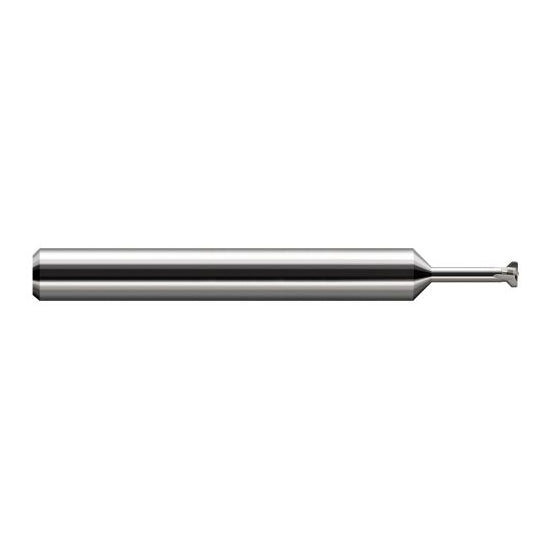

Features
- Tool designed to relieve stress concentrations at corners of undercut and bottom of last thread to prevent fracture and failure
- Chamfer eliminates burrs and partial threads at last thread
- Flattens bottom of hole to achieve maximum thread depth
- 4 flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3550" |
| Neck Diameter (Decimal Inch) | 0.2360" |
| Length of Cut (Decimal Inch) | 0.1360" |
| Neck Length (Decimal Inch) | 1.0780" |
| Neck Length (Inch) | 1-5/64" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| End Length (Decimal Inch) | 0.0800" |
| Radial Depth of Cut (Decimal Inch) | 0.0560" |
| Radius (Decimal Inch) | 0.0300" |
| Angle Per Side | 45 Degrees |
| Included Angle | 90 Degrees |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Coating | Uncoated |
