Product Specifications

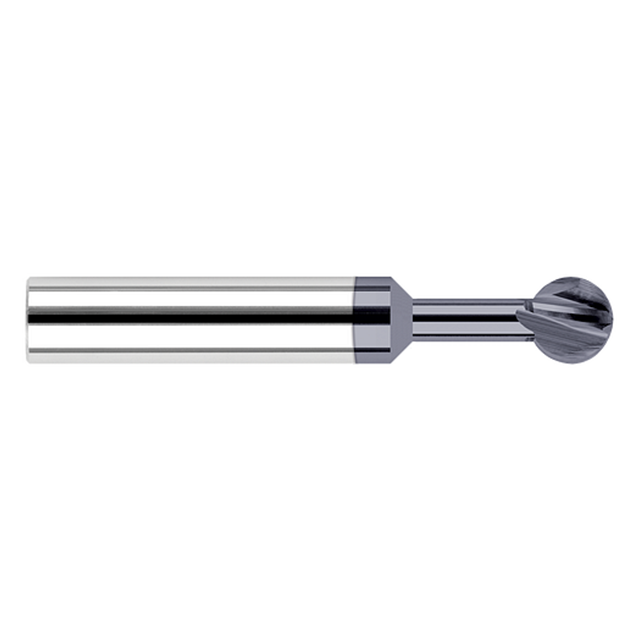

| Manufacturer Part Number | 940148-C3 |
| Diameter (Inch) | 3/4" |
| Diameter (Decimal Inch) | 0.750" |
| Neck Diameter (Decimal Inch) | 0.355" |
| Length of Cut (Decimal Inch) | 0.699" |
| Neck Length (Inch) | 2-1/2" |
| Neck Length (Decimal Inch) | 2.500" |
| Overall Reach (Decimal Inch) | 3.200" |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.000" |
| Radius (Inch) | 3/8" |
| Radius (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Wrap Angle (Degree) | 300 Degree |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Undercutting End Mill |
