Harvey Tool

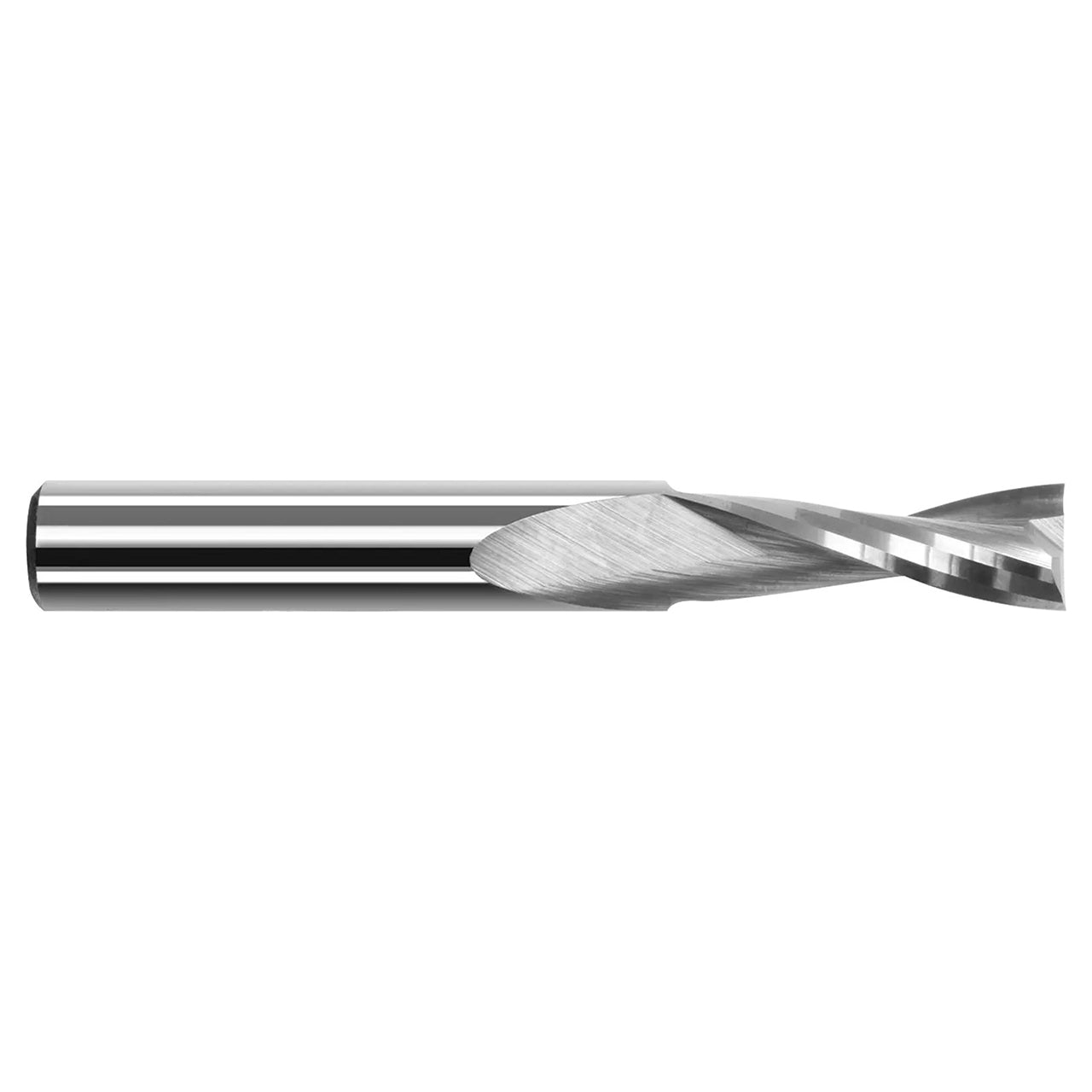

Harvey Tool 938962-C4 | 0.0625" (1/16) Diameter x 0.1250" (1/8) Shank x 0.6250" (5/8) LOC x 2.0000" (2) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

Harvey Tool 938962-C4 | 0.0625" (1/16) Diameter x 0.1250" (1/8) Shank x 0.6250" (5/8) LOC x 2.0000" (2) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

SKU: 25232753

$62.70 USD
$62.70 USD $62.70 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

Low stock: 10 left

Free Shipping on Orders Over $75

View full details

CNC ground in the USA from solid carbide, this fully stocked Harvey Tool offering of End Mills for Plastics - Square Upcut - 2 Flute features a slower helix (of approximately 20 Degree) for minimized lifting forces, preferable for vacuum table setups.

  • Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
  • Center cutting design improves plunging and ramping
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 938962-C4
Cutter Diameter (Inch) 0.0625" (1/16)
Length of Cut (Inch) 0.6250" (5/8)
Overall Length (Inch) 2.0000" (2)
Flutes 2
LOC Multiple 10x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C4
