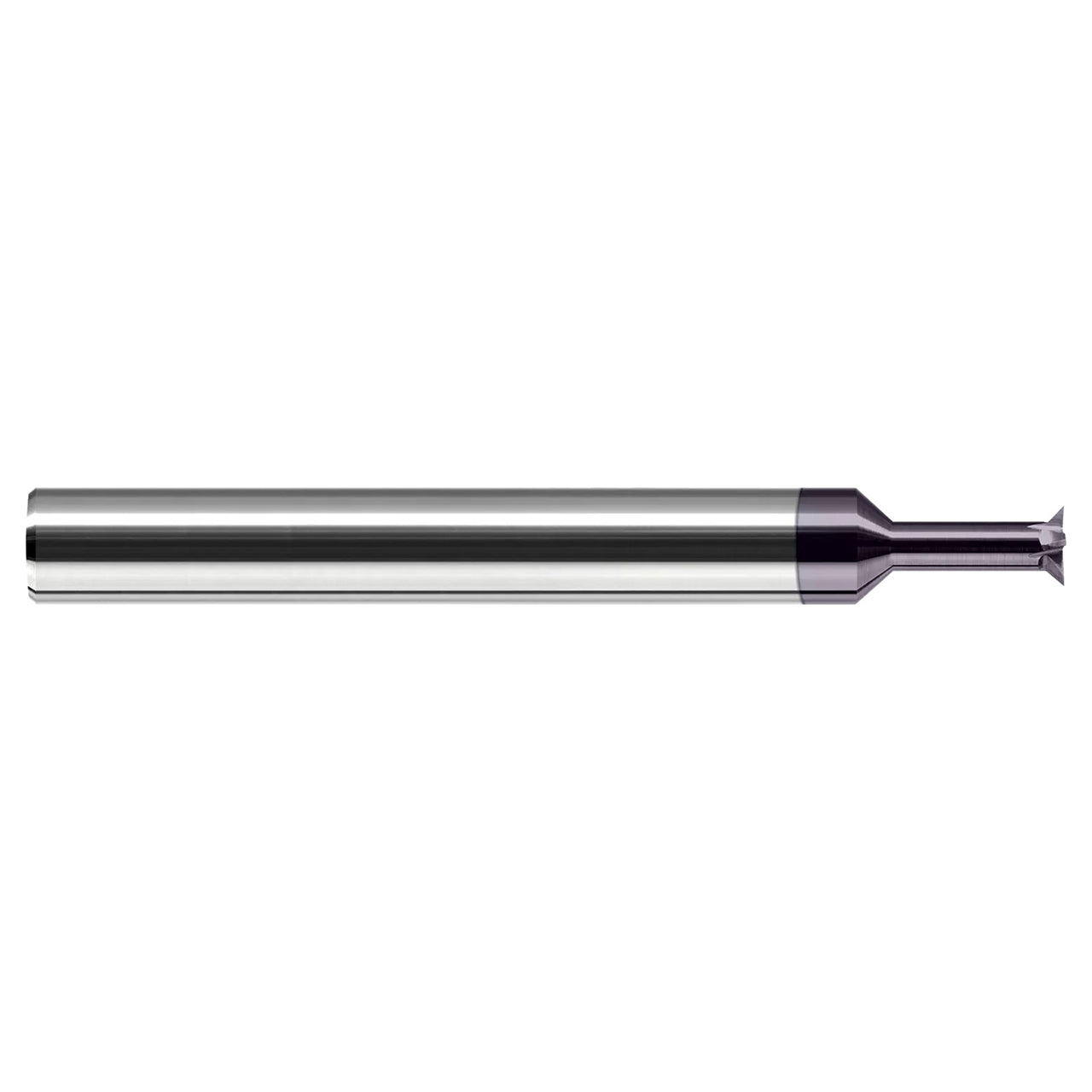

Solid carbide Back Chamfer Cutters offers a low profile design with multiple flutes and greater radial projection. This tool is optimized for generating chamfered features on the backside of small holes, resulting in improved part finishes.
- Low profile design and greater radial projection ideal for generating chamfered features on the backside of small holes or slots
- Decrease costs by avoiding time-consuming changes to part set-ups
- Left hand shear flute / right hand cut evacuates chip away from part
- Slightly undersized to fit in common hole sizes
- Multiple flutes for improved finish
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 938270-C3 |
| Head Diameter (Inch) | 0.3750" (3/8) |
| Neck Diameter (Inch) | 0.2370" |
| Length of Cut (Inch) | 0.0660" |
| Neck Length (Inch) | 1.1250" (1-1/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 6 |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating | C3 |
