Harvey Tool

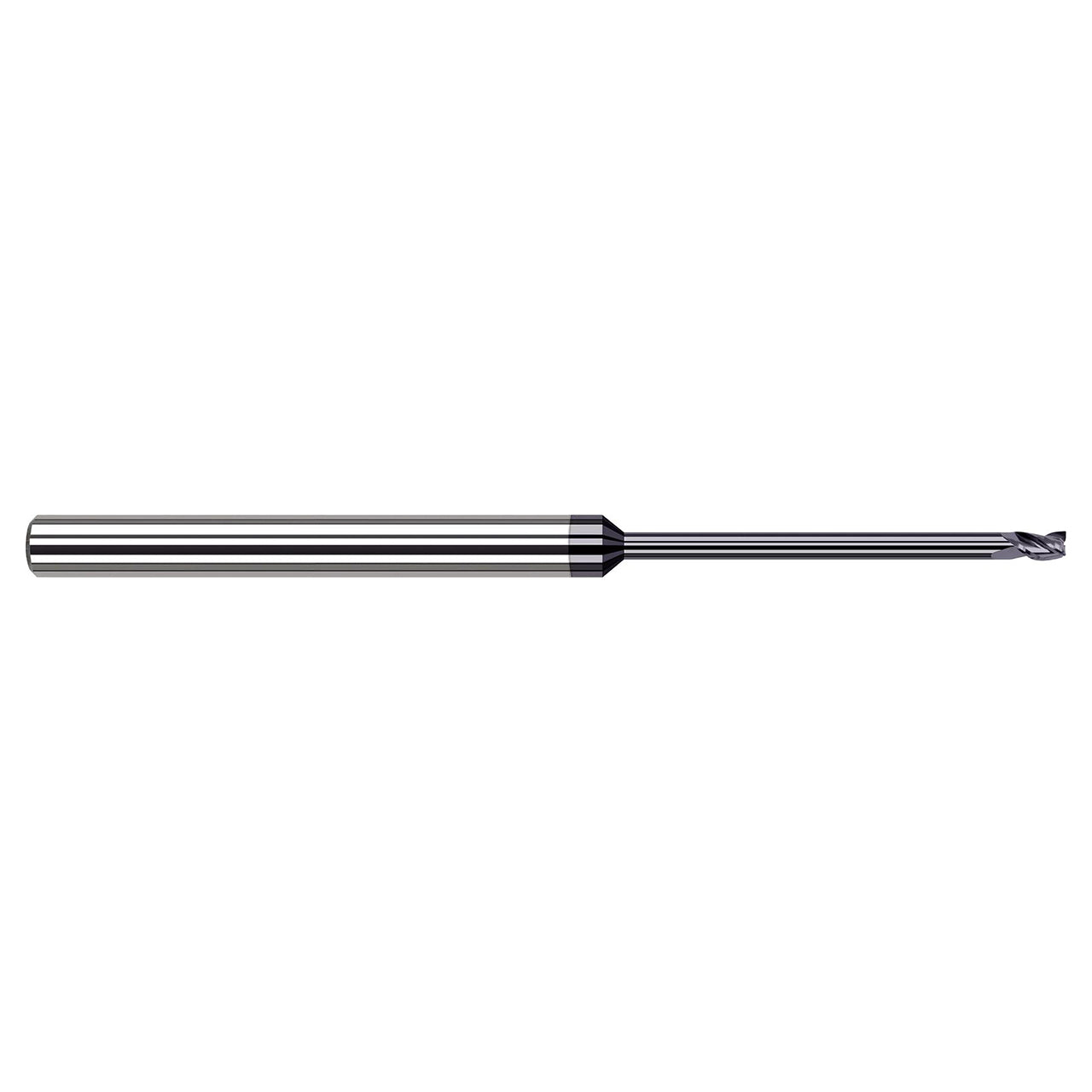

Harvey Tool 937020-C4 | 0.0200" (0.5 mm) Diameter x 0.1250" (1/8) Shank x 0.0300" LOC x 2.5000" (2-1/2) OAL x 3 Flutes Amorphous Diamond Coated Carbide Square End Mill

Harvey Tool 937020-C4 | 0.0200" (0.5 mm) Diameter x 0.1250" (1/8) Shank x 0.0300" LOC x 2.5000" (2-1/2) OAL x 3 Flutes Amorphous Diamond Coated Carbide Square End Mill

SKU: 25211699

$59.30 USD
$59.30 USD $59.30 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 9 Grams

View full details

This solid carbide offering of Miniature End Mills - Square - Long Reach, Stub Flute is fully stocked in seventeen reach lengths.

  • Long length design for deep cavities
  • Reduced neck diameter to avoid heeling
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 937020-C4
Cutter Diameter (Inch) 0.0200" (.5 mm)
Neck Diameter (Inch) 0.0192"
Length of Cut (Inch) 0.0300"
Overall Reach (Inch) 0.1200"
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 1.5x
Reach Multiple 6x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C4
