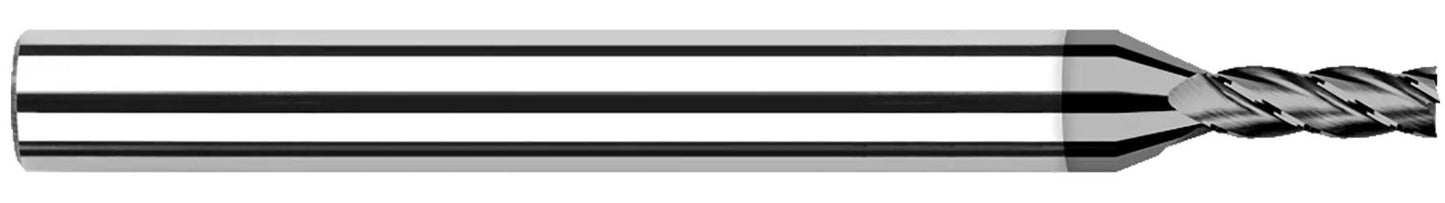

Fully stocked and ready to ship the day of purchase in cutter diameters as miniature as .015", this Harvey Tool offering of Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Square features 4 flutes and true crystalline CVD diamond on solid carbide substrate.
- True crystalline CVD diamond on solid carbide substrate
- Ideal for machining graphite and composites, green carbide, and green ceramics
- Maximum abrasion resistance increases tool life
- 4 flutes
- h6 shank tolerance for high precision tool holders
- Center cutting
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 2.6250" (2-5/8) |
| Overall Length (Inch) | 6.0000" (6) |
| Number of Flutes | 4 |
| LOC Multiple | 5x |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | C5 |
