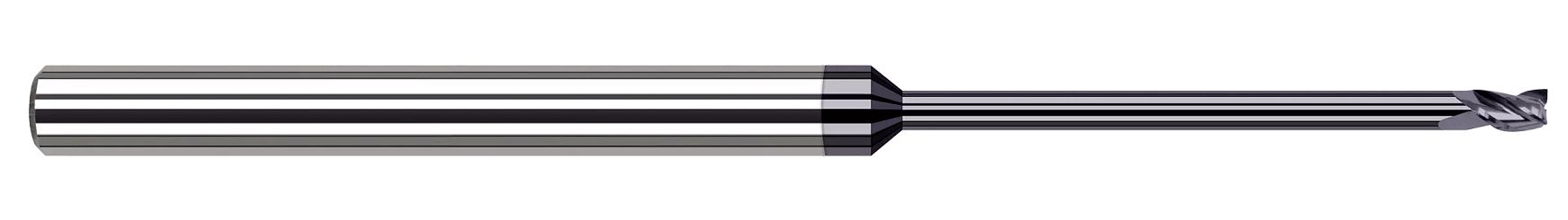

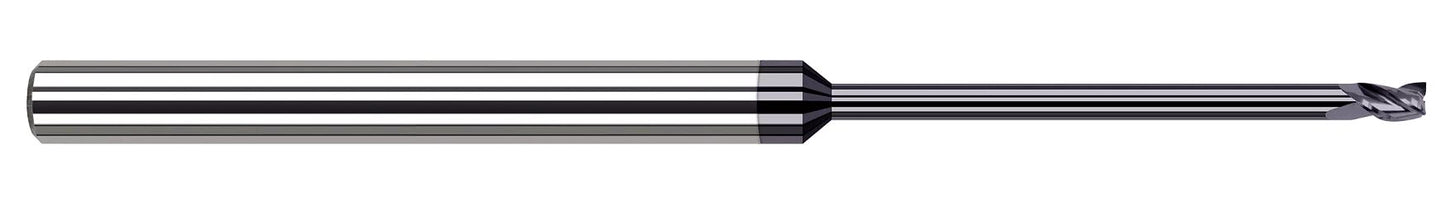

CNC ground in the USA, Harvey Tool's solid carbide Router Style Miniature End Mills are offered in 2 or 4 flute styles and feature a square profile, router style shank, and tighter overall length tolerances for quick and consistent CNC tool changes.
- Router style shank and tight overall length for quick and consistent tool changes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0390" (1 mm) |
| Neck Diameter (Inch) | 0.0380" |
| Length of Cut (Inch) | 0.0590" |
| Overall Reach (Inch) | 0.2810" (9/32) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| LOC Multiple | 1.5x |
| Reach Multiple | 7x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
