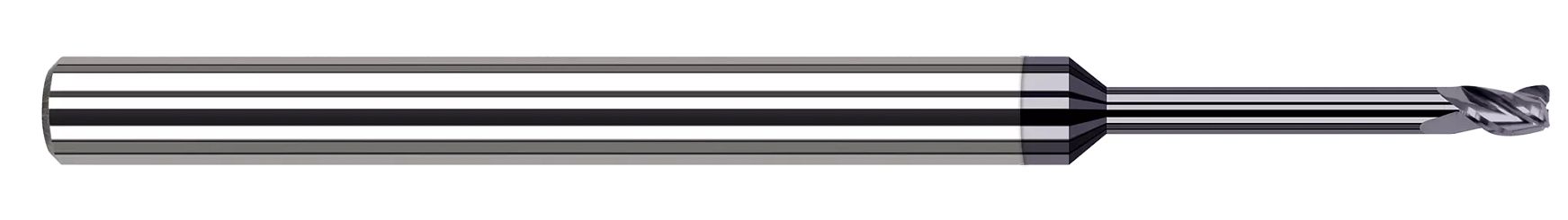

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.
- Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- h6 shank tolerance for high precision tool holders
- Suitable for steels up to 45Rc
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0200" (.5 mm) |
| Neck Diameter (Inch) | 0.0192" |
| Length of Cut (Inch) | 0.0300" |
| Overall Reach (Inch) | 0.2000" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| Corner Radius | 0.0040" |
| LOC Multiple | 1.5x |
| Reach Multiple | 10x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C6 |
