Product Specifications
| Manufacturer Part Number | 917839-C3 |
| Cutter Diameter (Decimal Inch) | 0.039" |
| Cutter Diameter (mm) | 1.00mm |
| Neck Diameter (Decimal Inch) | 0.038" |
| Length of Cut (Decimal Inch) | 0.059" |
| Overall Reach (Decimal Inch) | 0.400" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.005" |
| Number of Flute | 3 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (10x) |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | C3 |

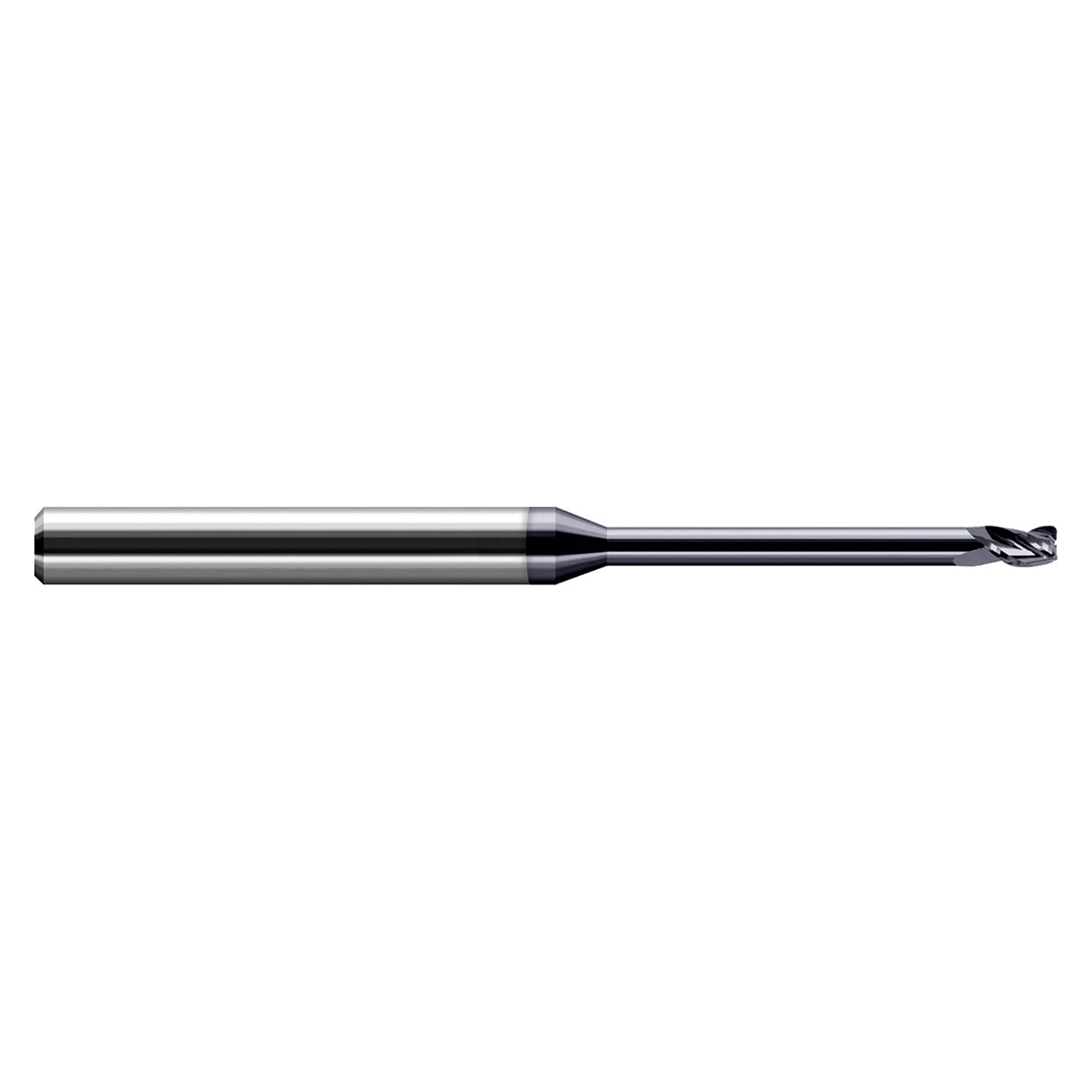

| Product Type | Corner Radius End Mill |
