Product Specifications
| Manufacturer Part Number | 898950-C6 |
| Neck Diameter (Decimal Inch) | 0.1220" |
| Length of Cut (Decimal Inch) | 0.0360" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Maximum Depth of Thread (Decimal Inch) | 1.5000" |
| Maximum Depth of Thread (Inch) | 1-1/2" |
| Tip Flat (Decimal Inch) | 0.0030" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Number of Flutes | 5 |
| Size | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Coating | C6 |

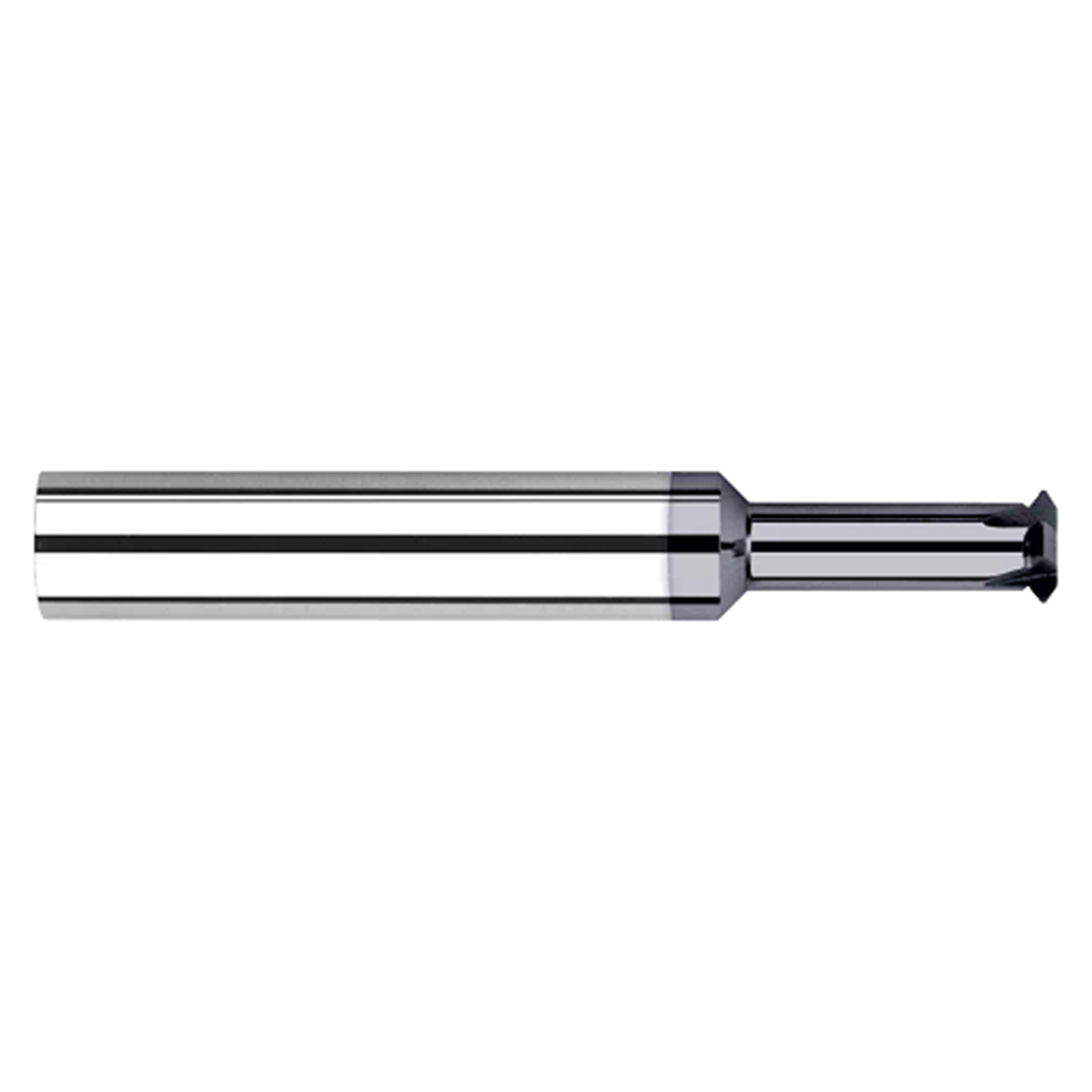

| Product Type | Thread Milling Cutter |
