Product Specifications
| Manufacturer Part Number | 898920-C6 |
| Cutter Diameter (mm) | 2.50mm |
| Neck Diameter (Decimal Inch) | 0.0620" |
| Neck Diameter (Inch) | 1/16" |
| Length of Cut (Decimal Inch) | 0.0230" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Maximum Depth of Thread (Decimal Inch) | 0.7500" |
| Maximum Depth of Thread (Inch) | 3/4" |
| Tip Flat (Decimal Inch) | 0.0025" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Number of Flutes | 4 |
| Size | 6" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Coating | C6 |

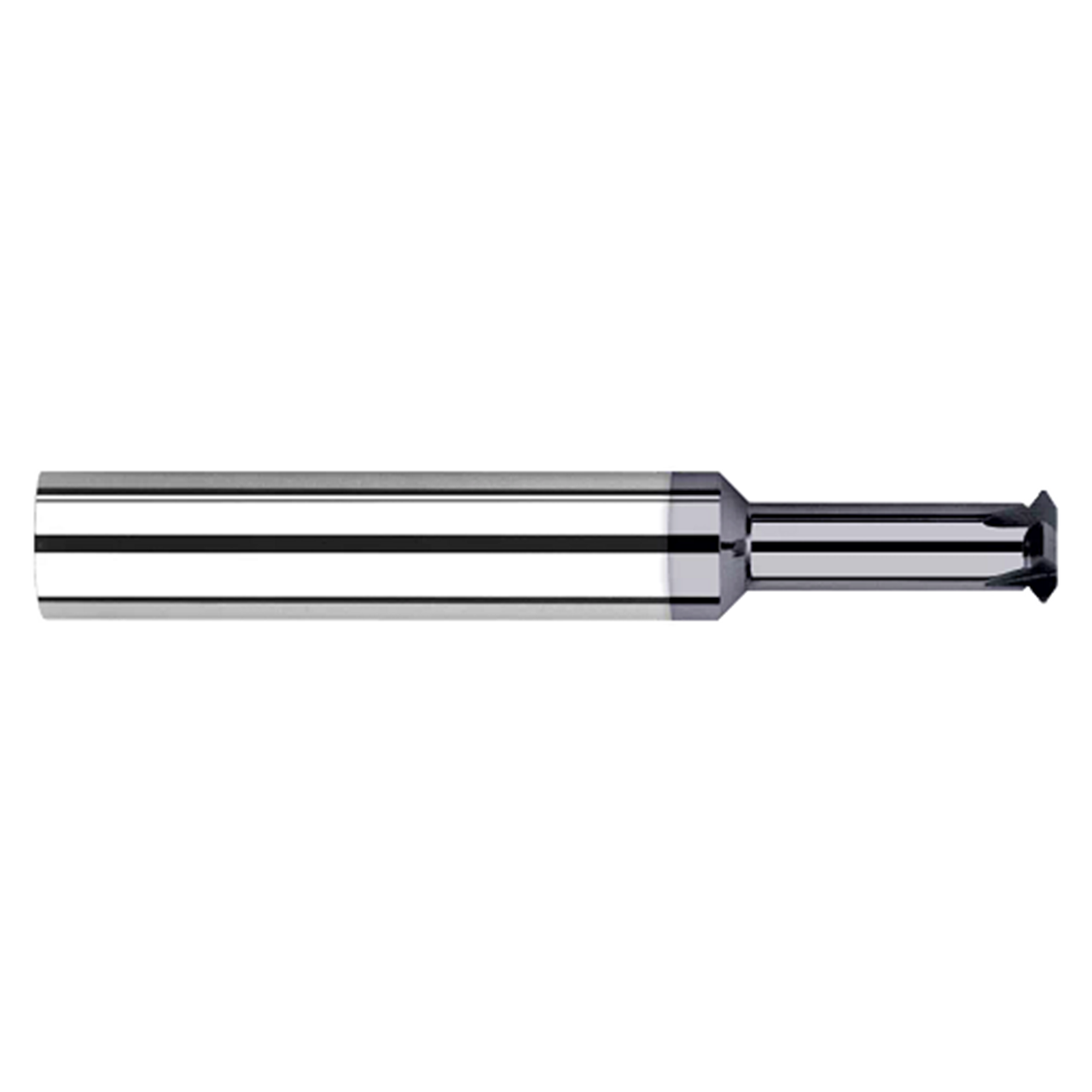

| Product Type | Thread Milling Cutter |
