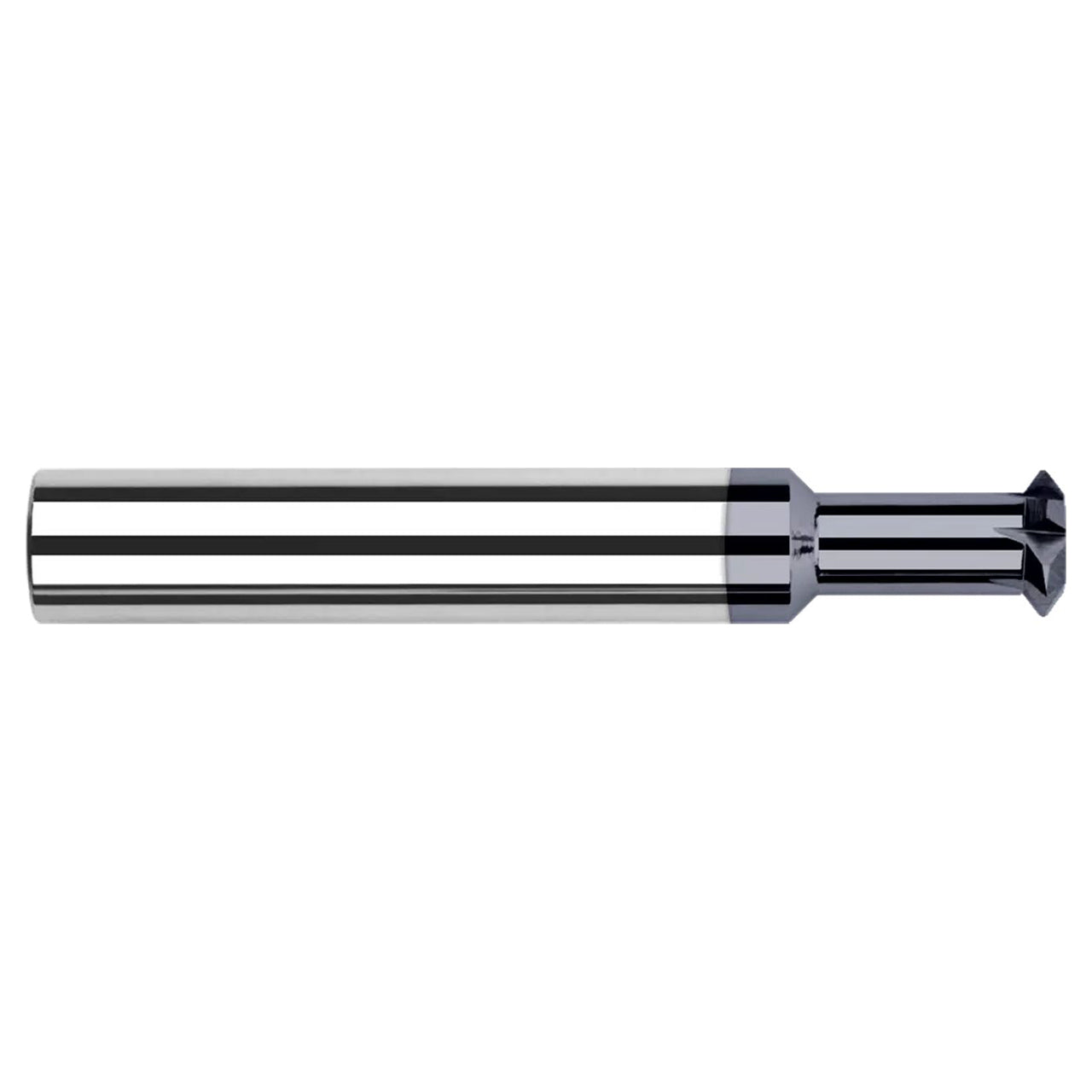

Harvey Tool 898408-C3 | 0.1250" (1/8) Diameter x 0.0670" Width x 0.1250" (1/8) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

Harvey Tool 898408-C3 | 0.1250" (1/8) Diameter x 0.0670" Width x 0.1250" (1/8) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

SKU: 25211651

$78.30 USD
$78.30 USD $78.30 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details

The tip radius on this Harvey Tool offering of Double Angle Shank Cutters improves strength and wear resistance.

  • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
  • Radius on tip for improved strength and wear resistance
  • Reduced neck for long reach machining
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 898408-C3
Cutter Diameter (Inch) 0.1250" (1/8)
Neck Diameter (Inch) 0.0620" (1/16)
Cutter Width (Inch) 0.0670"
Neck Length (Inch) 0.3120" (5/16)
Overall Length (Inch) 1.5000" (1-1/2)
Radius (Inch) 0.0050"
Angle per Side 45
Included Angle 90
Flutes 4
Shank Diameter (Inch) 0.1250" (1/8)
Coating C3
