Harvey Tool

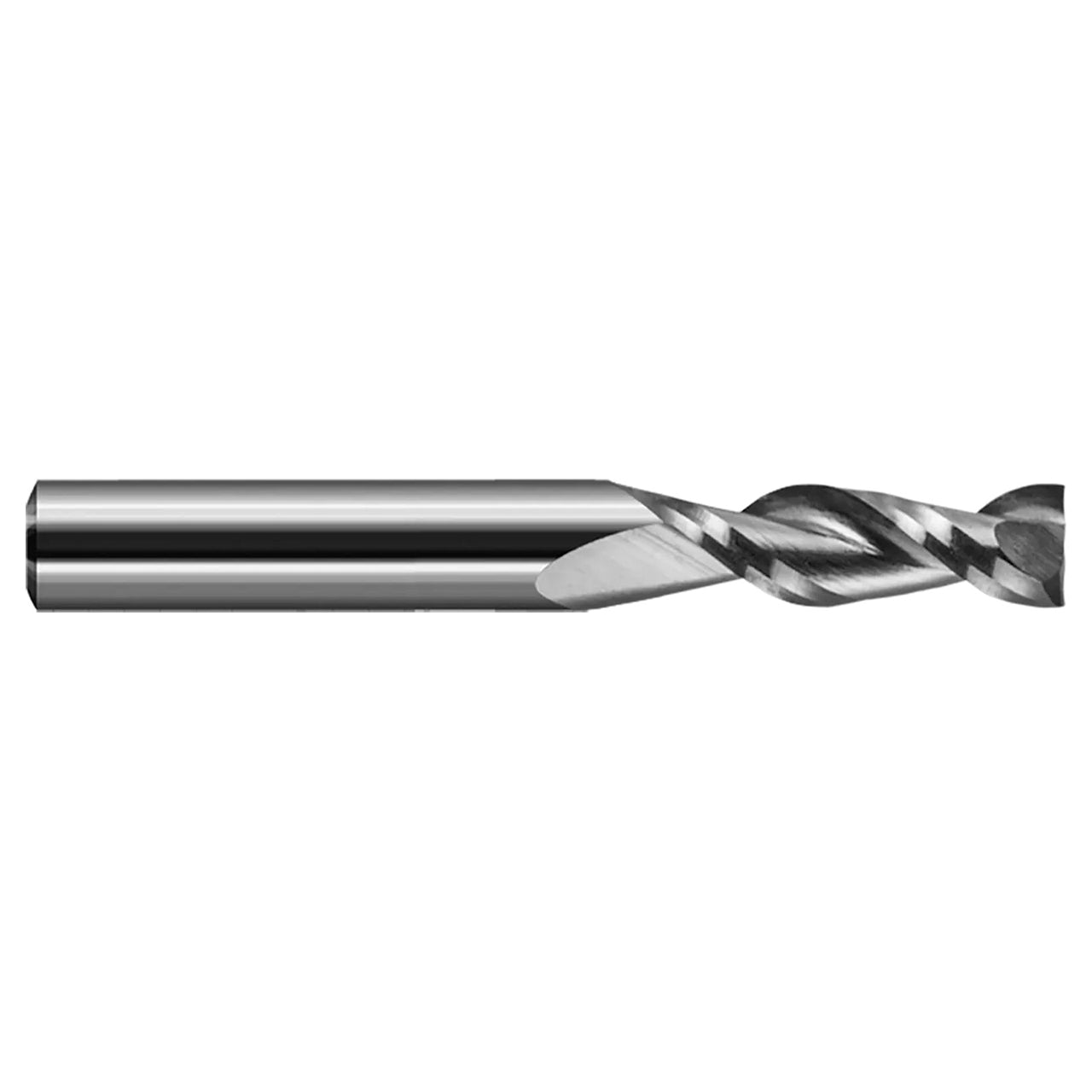

Harvey Tool 898232-C4 | 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 1.5000" (1-1/2) LOC x 4.0000" (4) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

Harvey Tool 898232-C4 | 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 1.5000" (1-1/2) LOC x 4.0000" (4) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

SKU: 25232742

$221.90 USD
$221.90 USD $221.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 150 Grams

View full details

The Harvey Tool End Mills for Plastics - Square Upcut - 2 Flute product offering features tooling with a slower helix, which reduces lifting forces, making its design preferable for fiber-reinforced applications and vacuum table setups.

  • High rake, high relief design with large flute valley maximizes chip removal performance
  • 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
  • Center cutting design improves plunging and ramping
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 898232-C4
Cutter Diameter (Inch) 0.5000" (1/2)
Length of Cut (Inch) 1.5000" (1-1/2)
Overall Length (Inch) 4.0000" (4)
Flutes 2
LOC Multiple 3x
Shank Diameter (Inch) 0.5000" (1/2)
Coating C4
