Harvey Tool

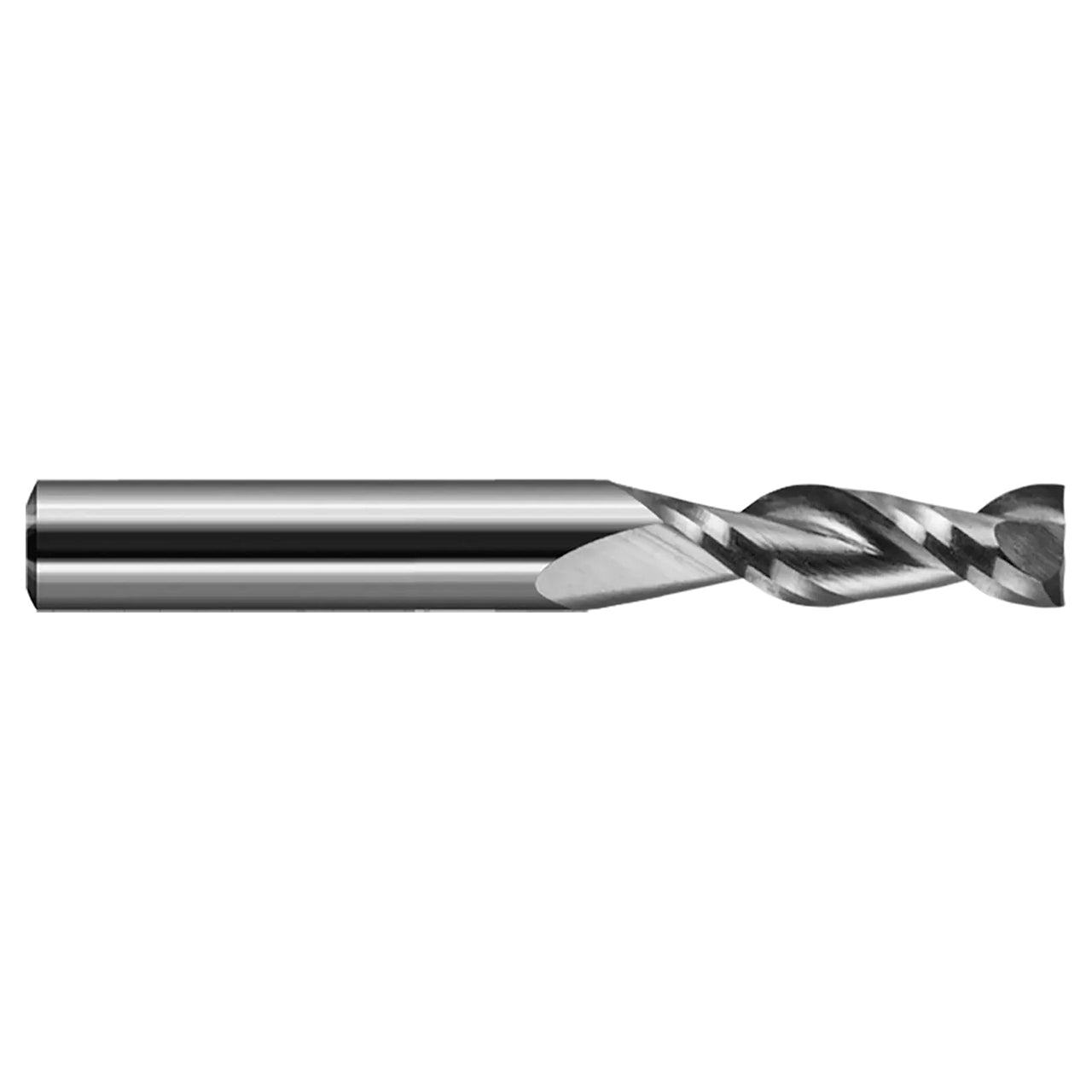

Harvey Tool 898212-C4 | 0.1875" (3/16) Diameter x 0.1875" (3/16) Shank x 0.5700" LOC x 2.0000" (2) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

Harvey Tool 898212-C4 | 0.1875" (3/16) Diameter x 0.1875" (3/16) Shank x 0.5700" LOC x 2.0000" (2) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

SKU: 25232739

$76.90 USD
$76.90 USD $76.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 9 Grams

View full details

The Harvey Tool End Mills for Plastics - Square Upcut - 2 Flute product offering features tooling with a slower helix, which reduces lifting forces, making its design preferable for fiber-reinforced applications and vacuum table setups.

  • High rake, high relief design with large flute valley maximizes chip removal performance
  • 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
  • Center cutting design improves plunging and ramping
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 898212-C4
Cutter Diameter (Inch) 0.1875" (3/16)
Length of Cut (Inch) 0.5700"
Overall Length (Inch) 2.0000" (2)
Flutes 2
LOC Multiple 3x
Shank Diameter (Inch) 0.1875" (3/16)
Coating C4
